Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the air duct and air cleaner assembly.

    (Refer to "AIR CLEANER ")

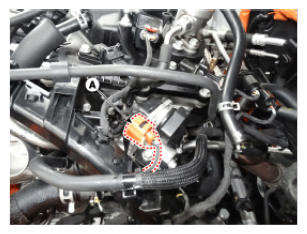

  3. Disconnect the EEGR control valve connector (A).
    G12787156Courtesy of HYUNDAI MOTOR AMERICA

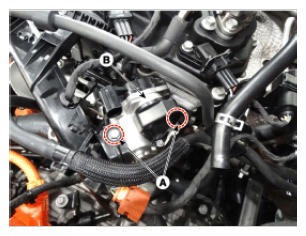

  4. Remove the EEGR control valve (B) after removing the mounting bolt (A).
    G12787157Courtesy of HYUNDAI MOTOR AMERICA
