Home >> Hyundai >> 2018 >> Sonata Plug-In Hybrid >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System (PHEV) >> Fuel Tank Pressure Sensor (FTPS) >> Repair Procedures >> Removal

Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the fuel tank.

    (Refer to "FUEL TANK ")

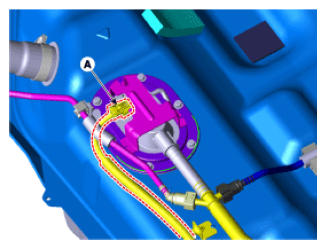

  3. Disconnect the fuel tank pressure sensor connector (A).
    G12787126Courtesy of HYUNDAI MOTOR AMERICA
  4. Release the hooks and then remove the fuel tank pressure sensor (B) from the fuel pump.
    G12787127Courtesy of HYUNDAI MOTOR AMERICA
