Home >> Hyundai >> 2018 >> Tucson Sport, FWD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 2.4L >> Accelerator Position Sensor (APS) >> Repair Procedures >> Removal

Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the negative (-) battery cable.

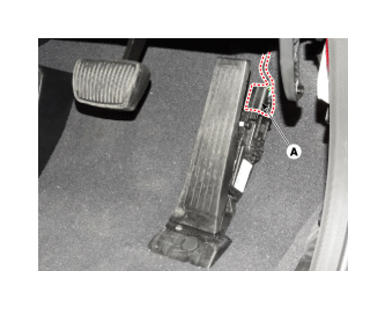

  2. Disconnect the accelerator position sensor connector (A).
    G12612780Courtesy of HYUNDAI MOTOR AMERICA

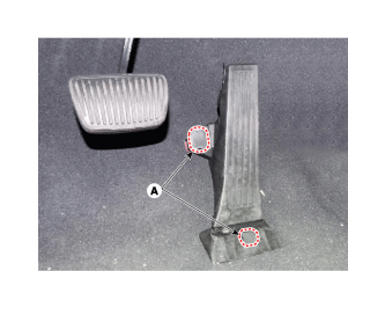

  3. Remove the mounting cap (A).
    G12612781Courtesy of HYUNDAI MOTOR AMERICA

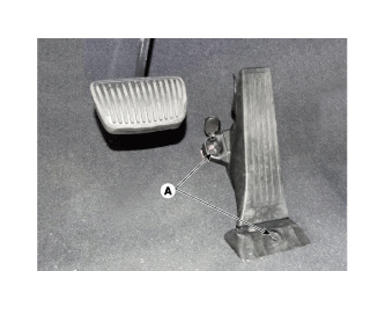

  4. Remove the installation bolt (A), and then remove the accelerator pedal module.

    Accelerator pedal module installation bolt:

    8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)

    G12612782Courtesy of HYUNDAI MOTOR AMERICA
