Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the resonator and the air intake hose.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

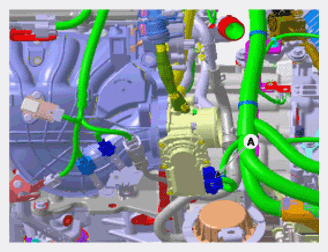

  3. Disconnect the ETC module connector (A).
    G12609006Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the installation bolts, and then remove the ETC module (A) from the engine.
    G12609007Courtesy of HYUNDAI MOTOR AMERICA
