Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Remove the air duck (A).

    (Refer to Engine Mechanical System - "AIR CLEANER ")

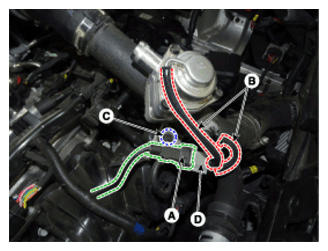

  3. Disconnect the RCV control solenoid valve connector (A) and vapor hoses (B).
  4. Remove the RCV control solenoid valve (D) by loosening the mounting bolts (C).
    G12609091Courtesy of HYUNDAI MOTOR AMERICA
