Home >> Hyundai >> 2019 >> Accent Limited >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Engine And Transaxle Assembly >> Engine Mounting >> Components And Components Location >> Components

Components And Components Location: Components

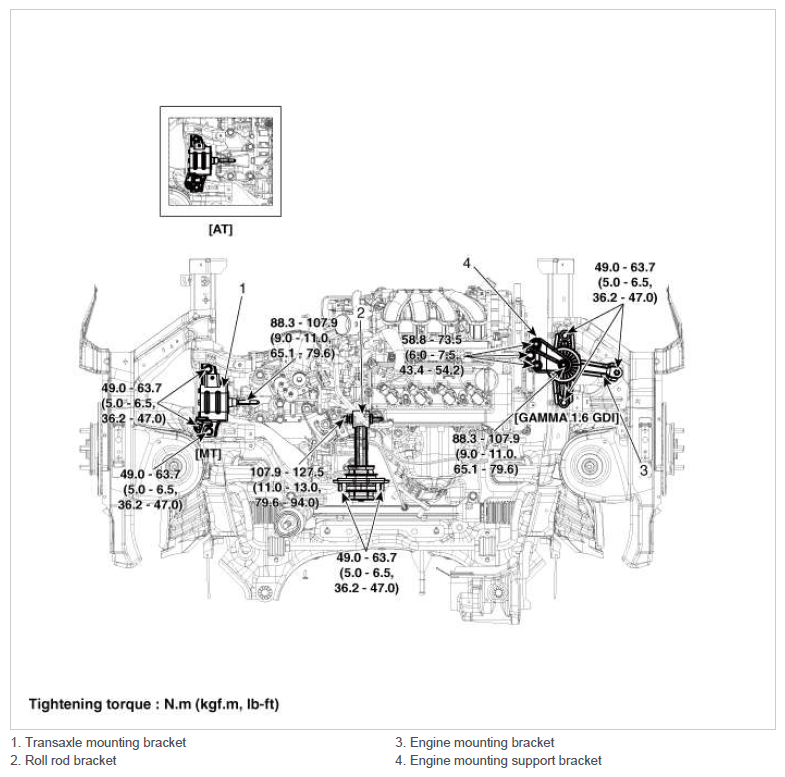

Fig 1: Engine Mounting Components Location With Torque Specification

G12594114

Courtesy of HYUNDAI MOTOR AMERICA
