Home >> Hyundai >> 2019 >> Elantra Eco >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 1.4L >> Camshaft Position Sensor (CMPS) >> Troubleshooting >> Waveform

Camshaft Position Sensor (CMPS): Troubleshooting: Waveform

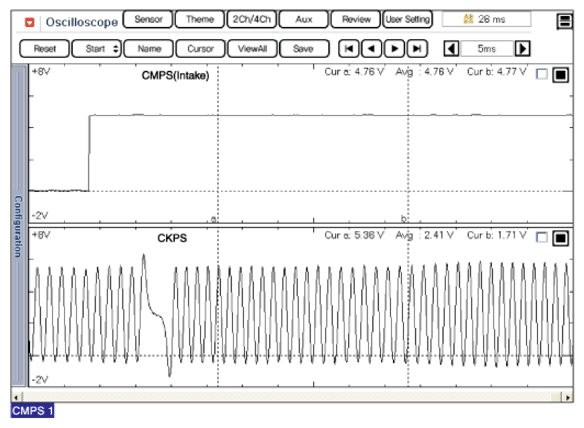

G12977073Courtesy of HYUNDAI MOTOR AMERICA

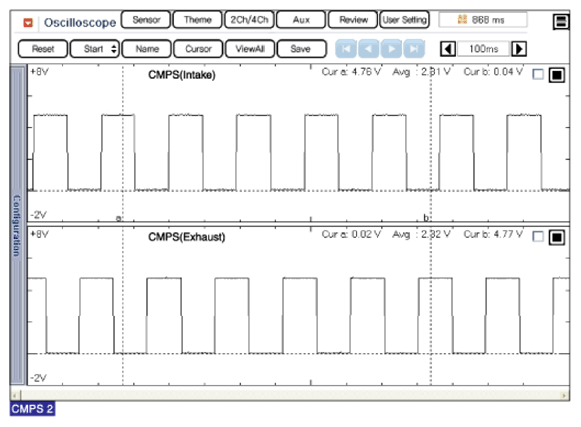

G12977074Courtesy of HYUNDAI MOTOR AMERICA
