Home >> Hyundai >> 2020 >> Elantra Eco >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 1.4L >> Components And Components Location >> Components Location

Components Location

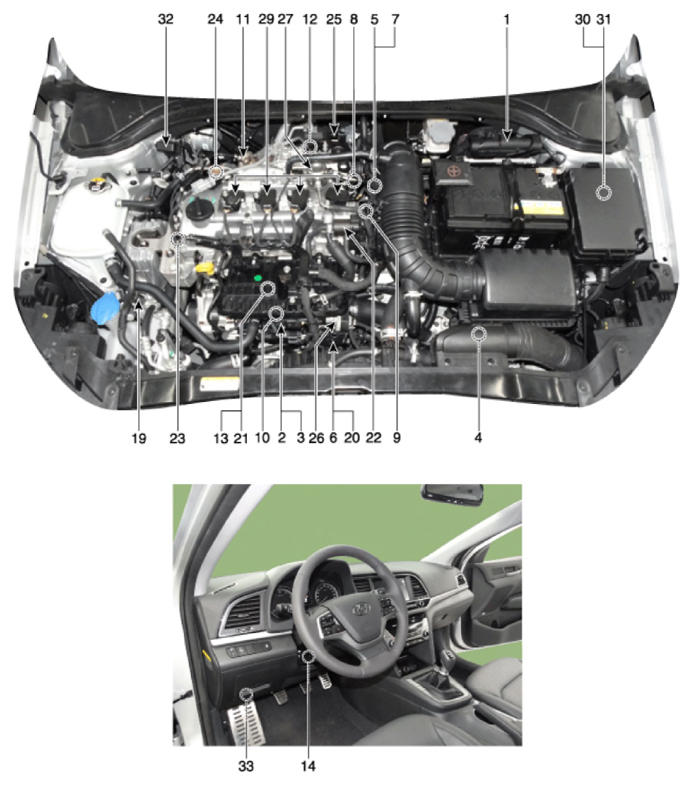

G14116514Courtesy of HYUNDAI MOTOR AMERICA

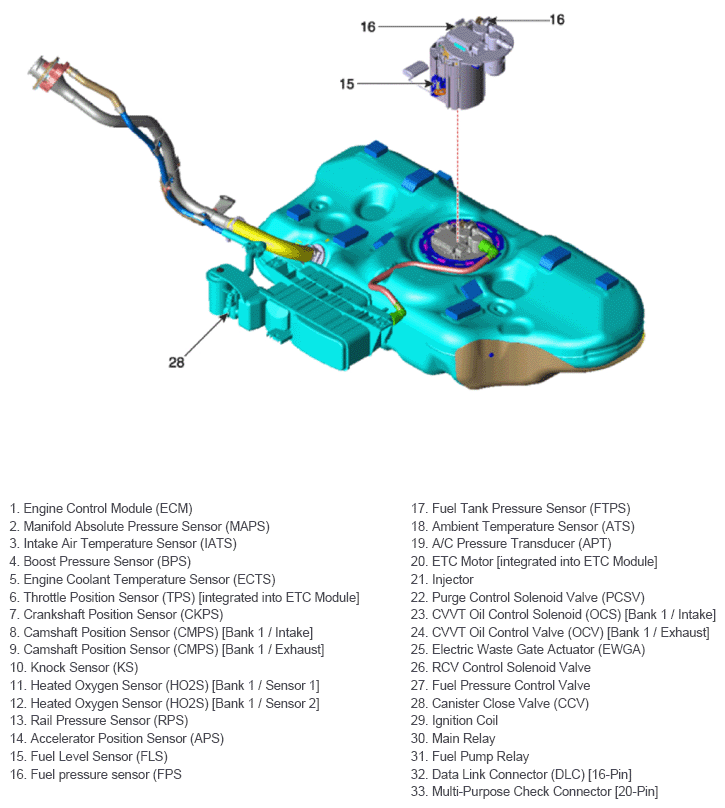

G14116515Courtesy of HYUNDAI MOTOR AMERICA

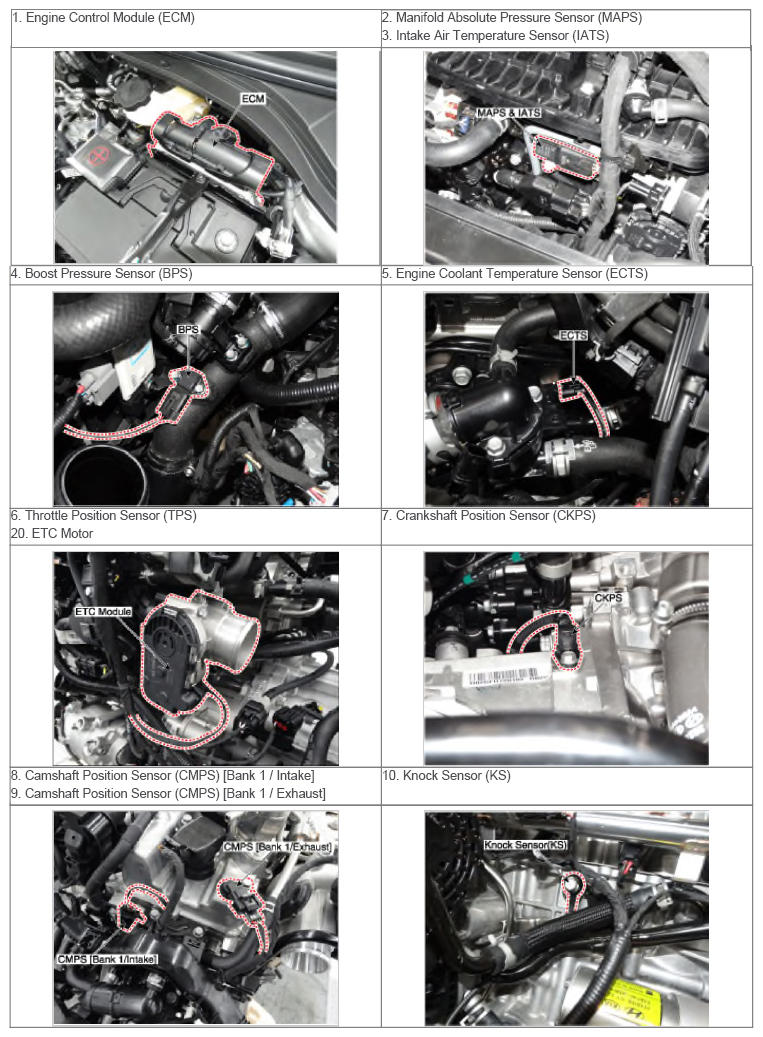

G14116516Courtesy of HYUNDAI MOTOR AMERICA

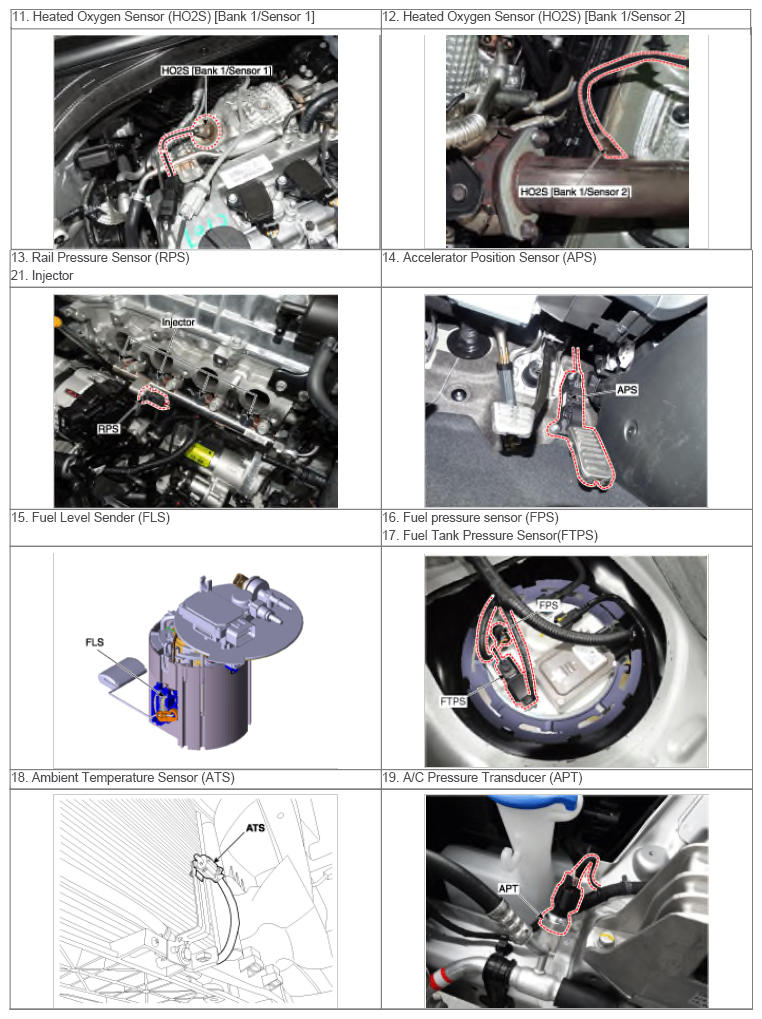

G14116517Courtesy of HYUNDAI MOTOR AMERICA

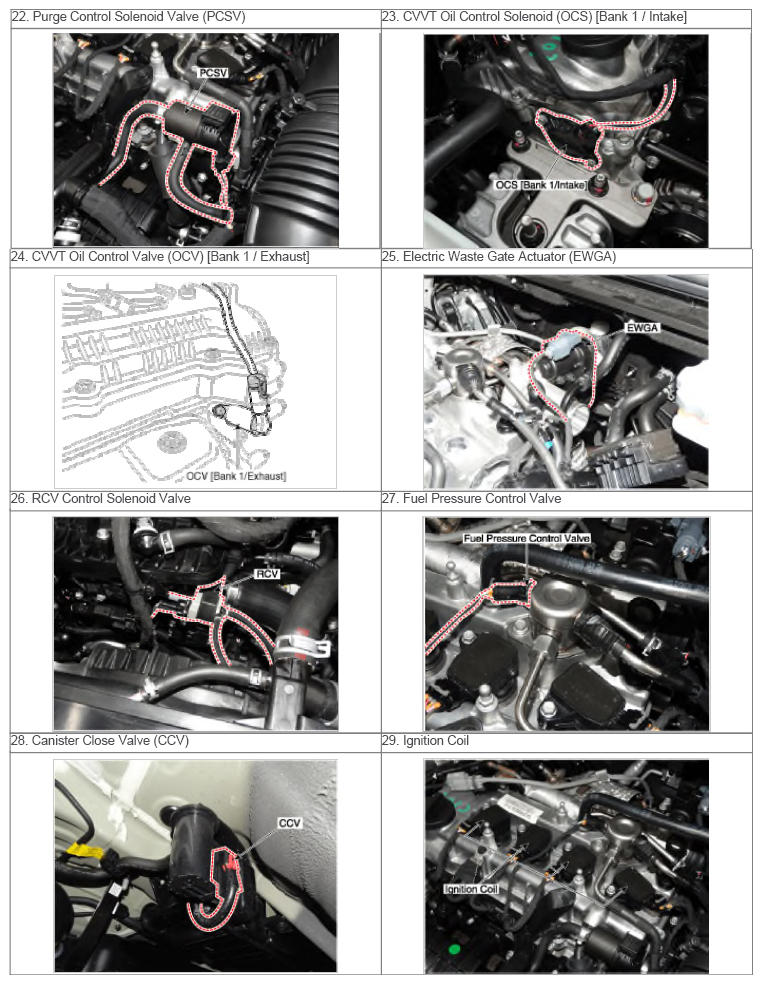

G14116518Courtesy of HYUNDAI MOTOR AMERICA

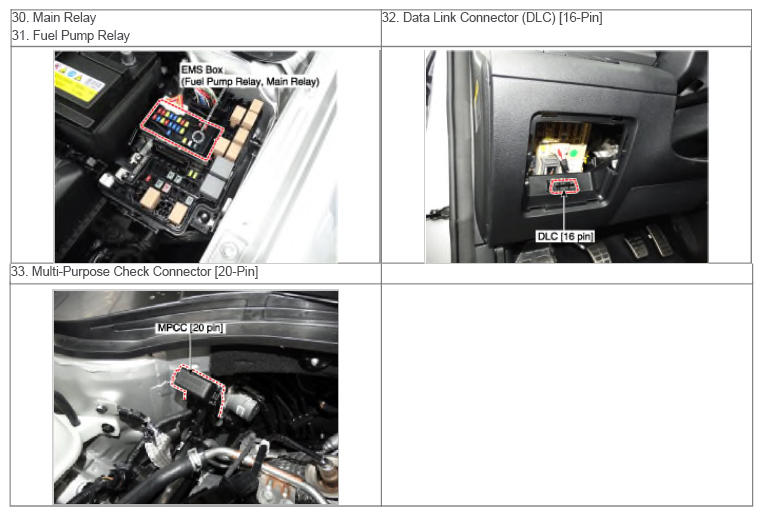

G14116519Courtesy of HYUNDAI MOTOR AMERICA
