Home >> Hyundai >> 2021 >> Accent Limited >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Smart Key System >> Smart Key Diagnostic >> Repair Procedures >> Inspection >> Neutralization Status Check

Neutralization Status Check

  1. Connect the cable of Diagnostic tool to the data link connector in driver side crash pad lower panel.

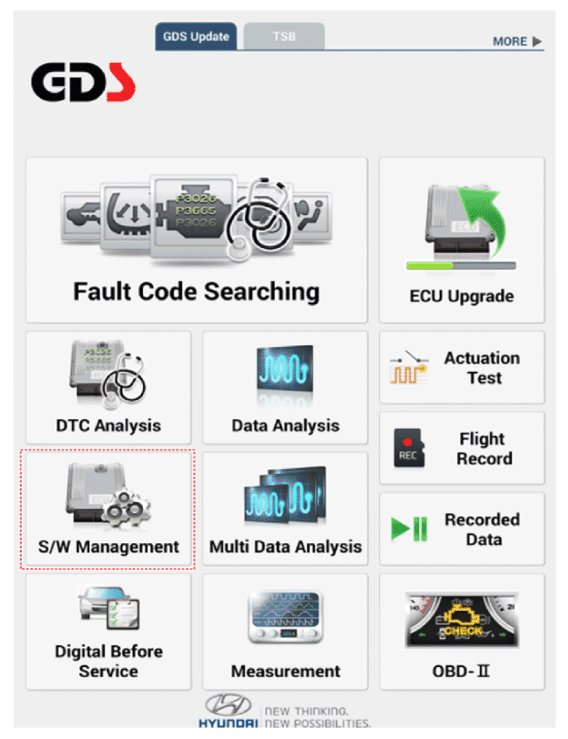

  2. Select the 'S/W Management' and 'Car model'.
    G14078648Courtesy of HYUNDAI MOTOR AMERICA

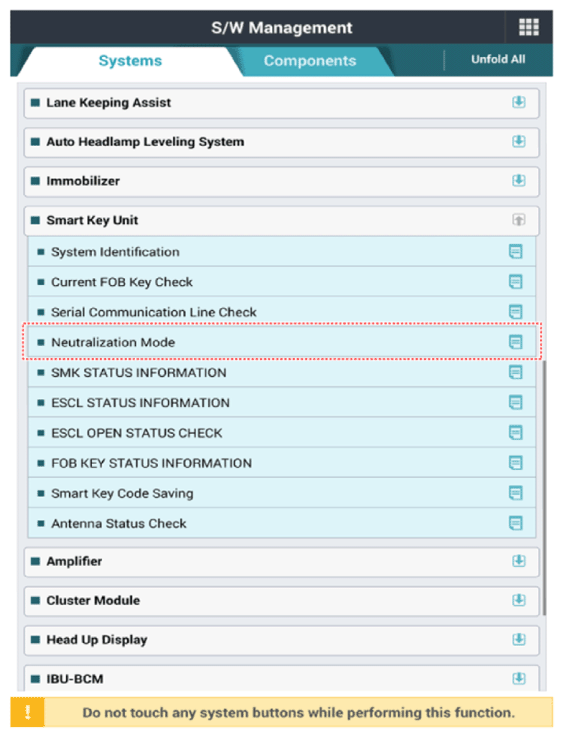

  3. Select the 'Smart Key Unit' and 'Neutralization Mode'.
    G14078649Courtesy of HYUNDAI MOTOR AMERICA

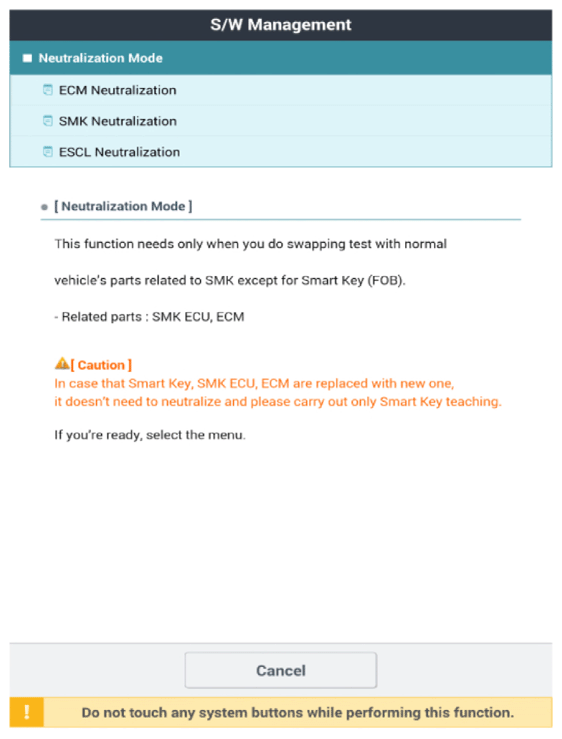

    G14078650Courtesy of HYUNDAI MOTOR AMERICA
