Smart Key Status Check

  1. Connect the cable of Diagnostic tool to the data link connector in driver side crash pad lower panel.
  2. Select the 'S/W Management' and 'Car model'.

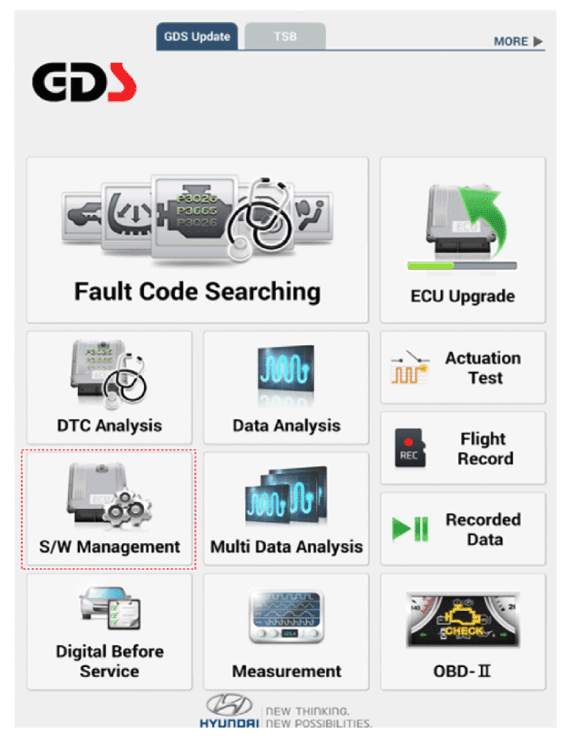

    G14078645Courtesy of HYUNDAI MOTOR AMERICA
  3. Select the 'Smart Key Unit' and 'SMK STATUS INFORMATION'.

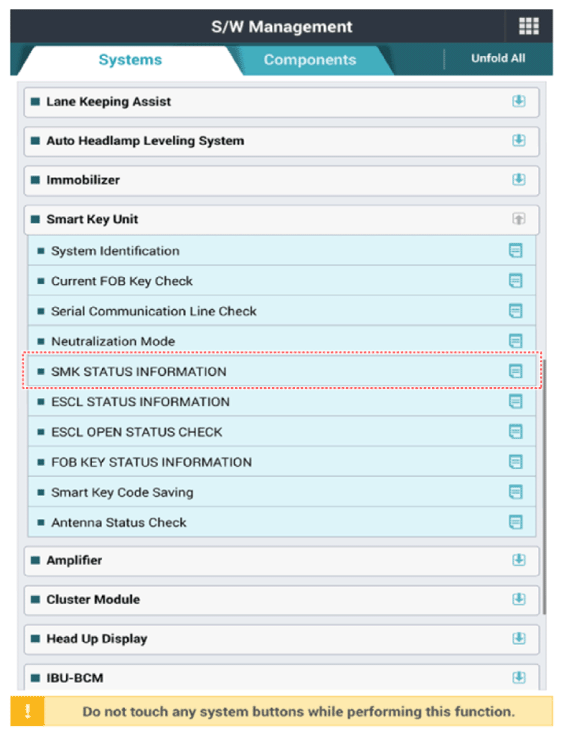

    G14078646Courtesy of HYUNDAI MOTOR AMERICA

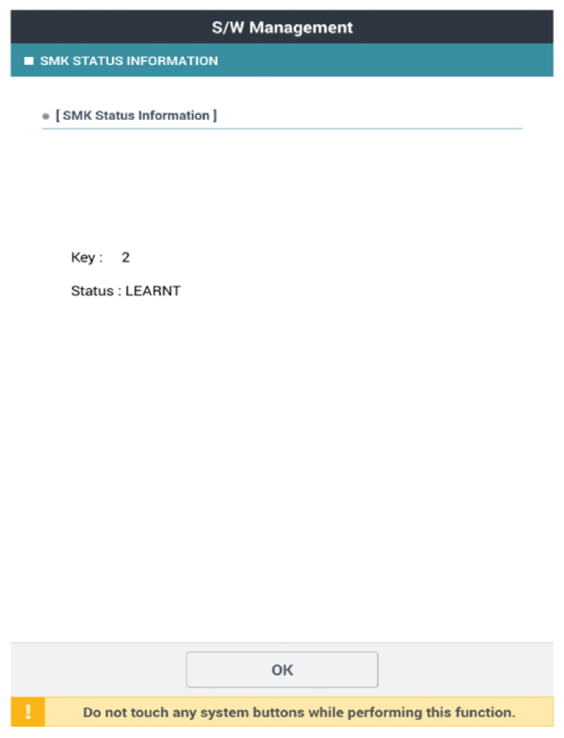

    G14078647Courtesy of HYUNDAI MOTOR AMERICA
