Components And Components Location: Components

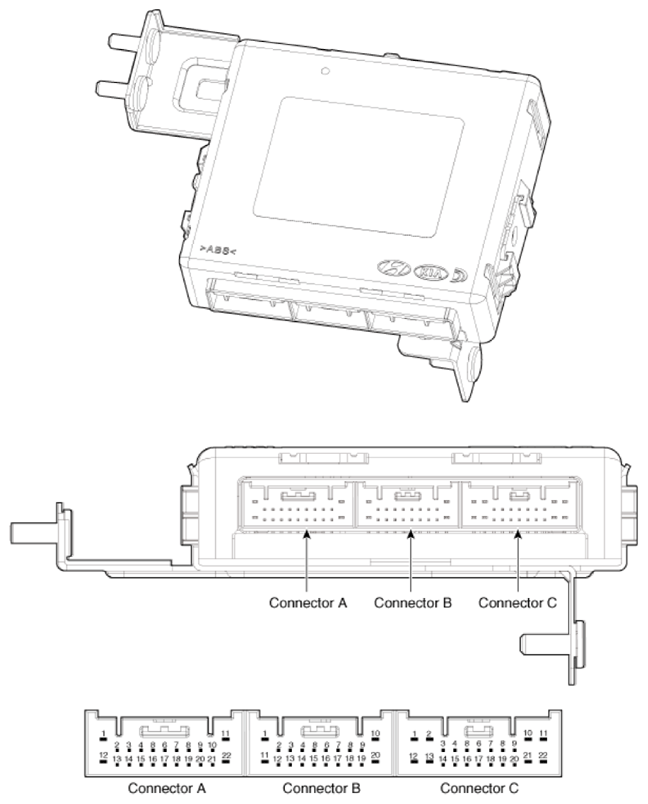

CONNECTOR PIN INFORMATION DESCRIPTION
| No | Connector A | Connector B | Connector C |
|---|---|---|---|
| 1 | - | IGN 2 Relay output | Battery (+) |
| 2 | SSB Switch 1 input | P CAN Low | - |
| 3 | Driver outside handle switch input | P CAN High | Immobilizer antenna power output |
| 4 | - | B CAN High | Outside handle antenna driver power output |
| 5 | - | B CAN Low | Outside handle antenna assist power output |
| 6 | - | SSB Illumination (amber) output | Bumper antenna power output |
| 7 | RPM input | - | Interior antenna 1 power output |
| 8 | Start feedback input | SSB Illumination (+) output | Interior antenna 2 power output |
| 9 | IGN 2 | ESCL Enable output | Interior antenna 3 power output |
| 10 | - | Battery (+) power | - |
| 11 | Starter relay output | IGN 1 Relay output | - |
| 12 | Power1 ground | ESCL COM | - |
| 13 | SSB Switch 2 input | EMS COM | ESCL (-) Output |
| 14 | Assist outside handle switch input | - | Immobilzer antenna ground output |
| 15 | - | SSB Illumination (-) output | Outside handle antenna driver ground output |
| 16 | P Position input/Clutch switch input | SSB Illumination (Blue) output SSB Illumination (Red) output |
Outside handle antenna assist ground output |
| 17 | ESCL Unlock switch input | - | Bumper antenna ground output |
| 18 | Wheel speed sensor input | Exterior buzzer output | Interior antenna 1 ground output |
| 19 | ACC input | - | Interior antenna 2 ground output |
| 20 | IGN 2 | ESCL (+) output | Interior antenna 3 ground output |
| 21 | Brake switch input | - | |
| 22 | ACC Relay output | Ground power 2 |
