Power Window Main Switch Inspection

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front door trim.

    (Refer to Body - "FRONT DOOR TRIM ")

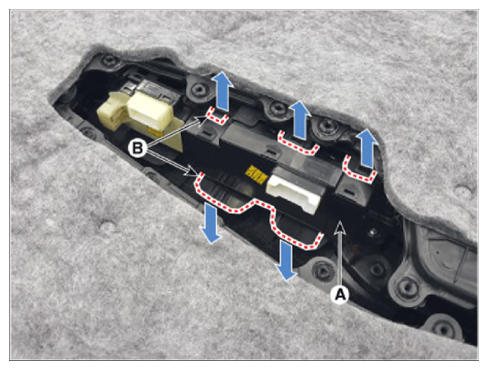

  3. Remove the power window switch assembly (A) by pulling out both ends of the switch holders (B).
    G14078809Courtesy of HYUNDAI MOTOR AMERICA
  4. Check for continuity between the terminals in each switch position according to the table. If the continuity condition is not normal, replace the switch.
    G14078810Courtesy of HYUNDAI MOTOR AMERICA

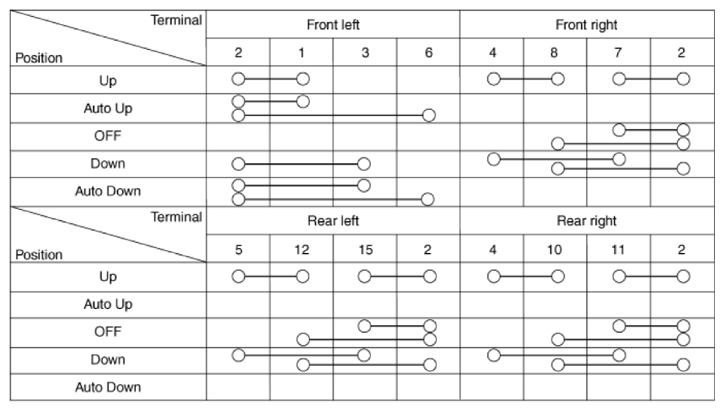

    [Driver Safety - Auto Up/Down]

    G14078811Courtesy of HYUNDAI MOTOR AMERICA

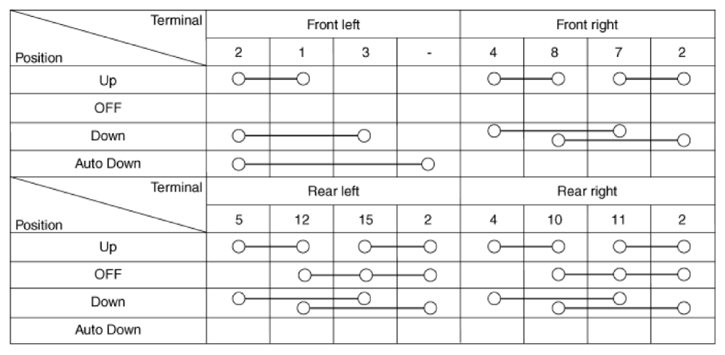

    [Driver Auto Down]

    G14078812Courtesy of HYUNDAI MOTOR AMERICA
