Repair Procedures: Disassembly

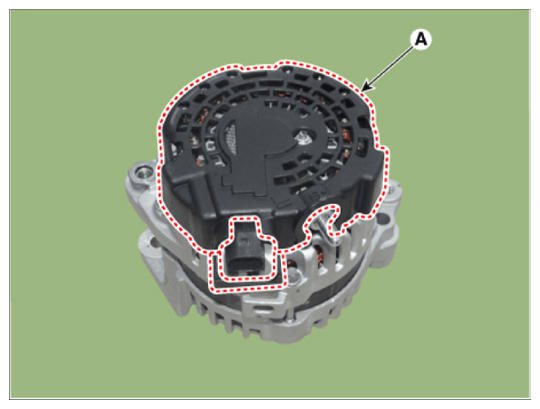

  1. Remove the rear cover (A).

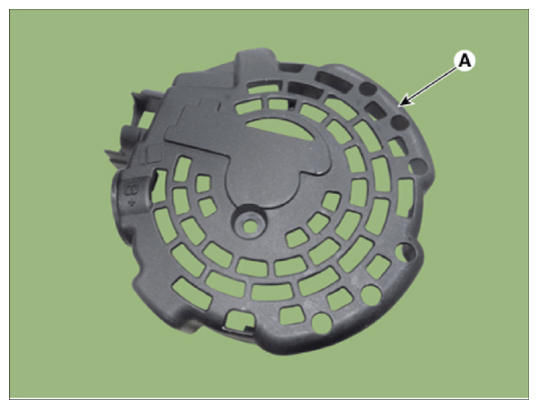

    G14076685Courtesy of HYUNDAI MOTOR AMERICA
    G14076686Courtesy of HYUNDAI MOTOR AMERICA

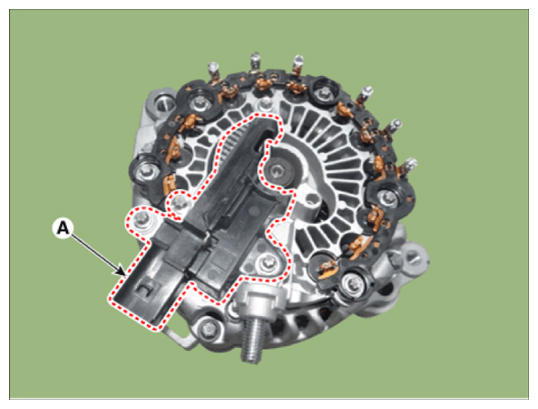

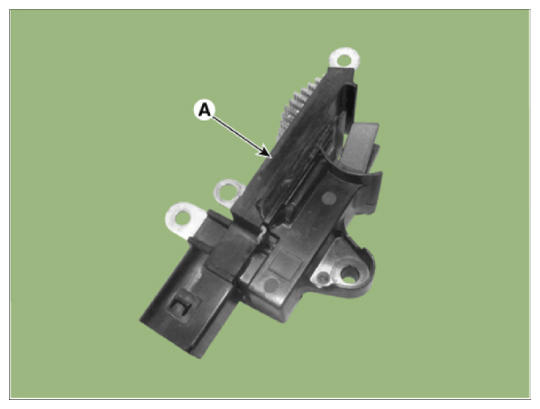

  2. Remove the mounting bolts (A) and the regulator assembly.
    NOTE:
    • When installing, replace with new OAP cap.
    G14076687Courtesy of HYUNDAI MOTOR AMERICA
    G14076688Courtesy of HYUNDAI MOTOR AMERICA

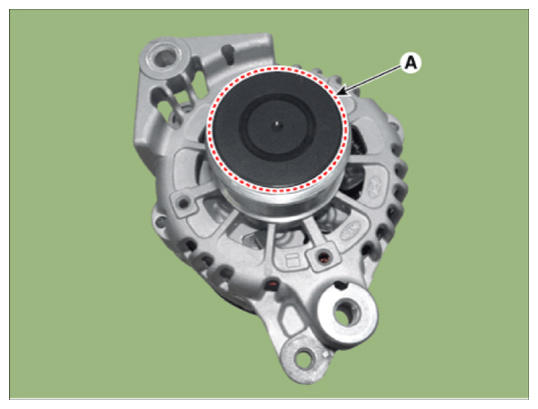

  3. Remove the OAP cap.
    G14076689Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • When installing, replace with new OAP cap.

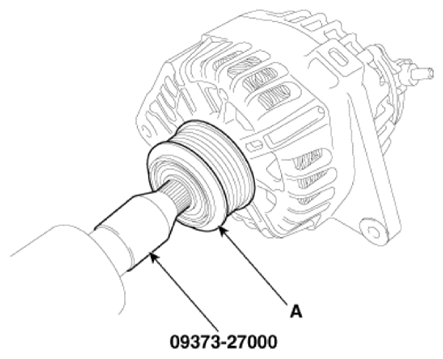

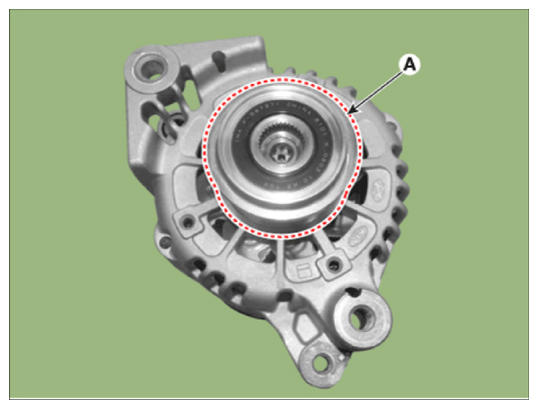

  4. Remove the OAP pulley (A) using the special tool (09373-27000).
    G14076690Courtesy of HYUNDAI MOTOR AMERICA
    G14076691Courtesy of HYUNDAI MOTOR AMERICA
  5. Remove the rectifier assembly (A) after disconnecting the stator leads.
    G14076692Courtesy of HYUNDAI MOTOR AMERICA

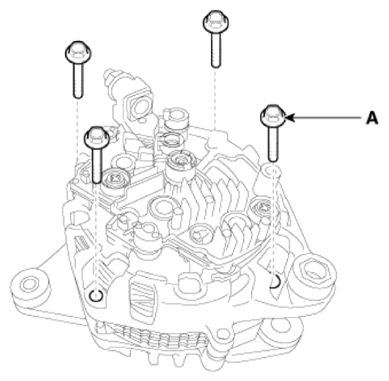

  6. Remove the 4 through bolts (A).
    G14076693Courtesy of HYUNDAI MOTOR AMERICA

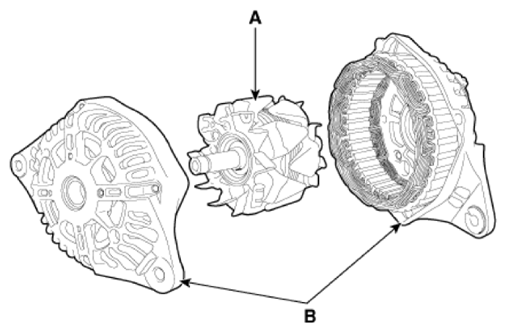

  7. Disconnect the rotor (A) and bracket (B).
    G14076694Courtesy of HYUNDAI MOTOR AMERICA
  8. Install in the reverse order of removal.
