Repair Procedures: Installation

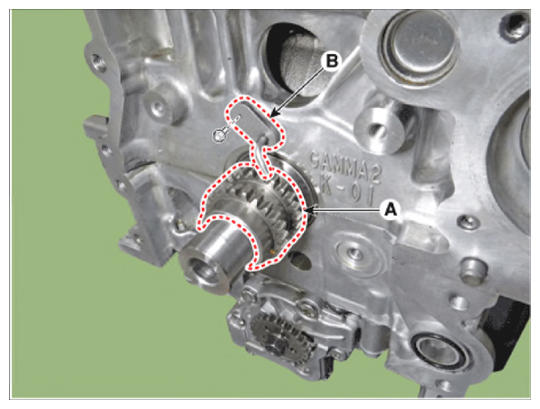

Install the crankshaft sprocket (A) and timing chain oil jet (B).
Tightening torque:

7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

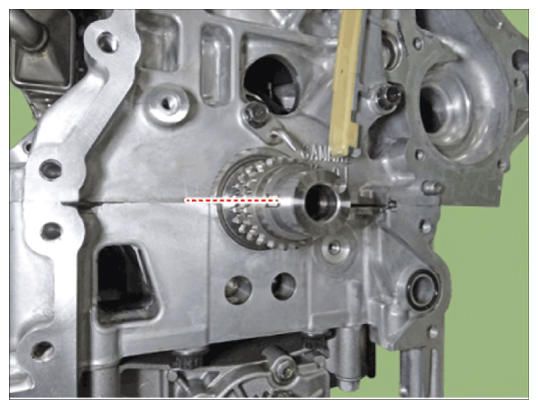

Place the crankshaft key at the left 180°.

Courtesy of HYUNDAI MOTOR AMERICA
Install the oil pump chain.
(Refer to Lubrication System - "OIL PUMP ")

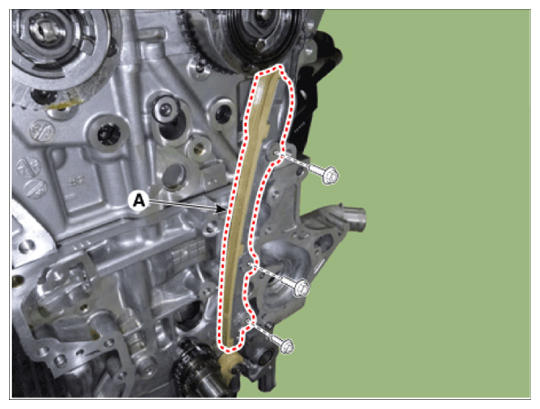

Install the timing chain guide (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

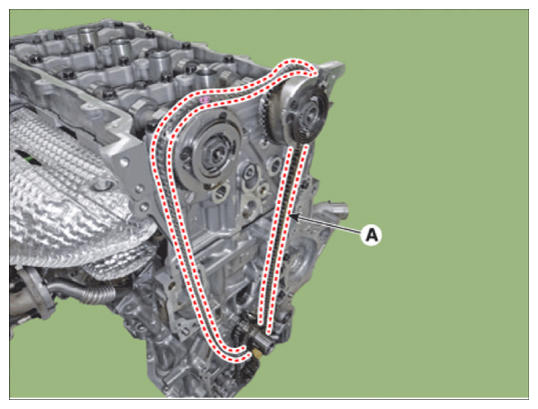

Install the timing chain (A).

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- When installing the timing chain, be sure that the timing mark of each sprocket is matched with the timing mark (color link) of the timing chain.

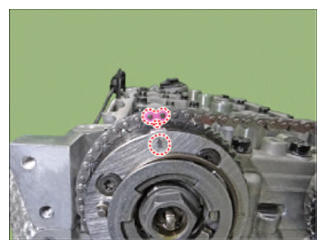

[Intake CVVT Timing Mark]

Courtesy of HYUNDAI MOTOR AMERICA

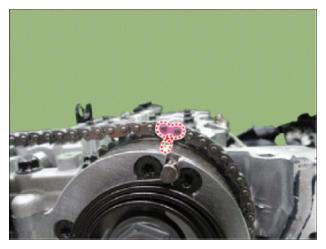

[Exhaust CVVT Timing Mark]

Courtesy of HYUNDAI MOTOR AMERICA

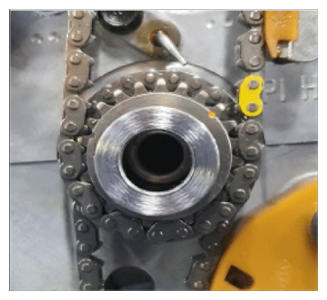

[Crankshaft Sprocket Timing Mark]

Courtesy of HYUNDAI MOTOR AMERICA

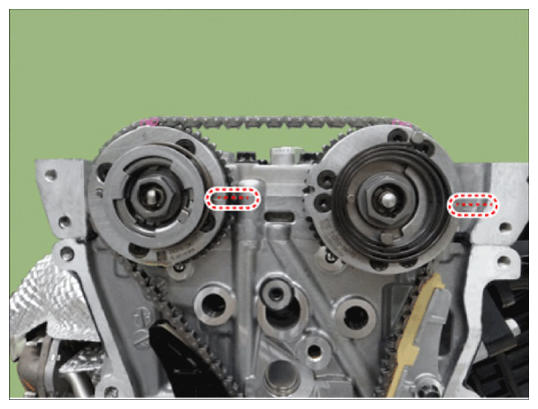

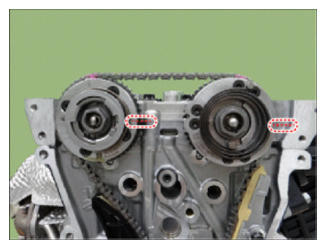

- When installing the timing chain, check that the TDC mark on the front of the intake and exhaust CVVT is positioned at 0°(pointing right).
Courtesy of HYUNDAI MOTOR AMERICA

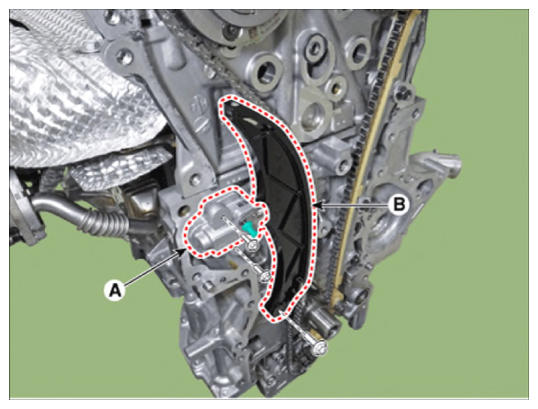

Install the timing chain tensioner (A) and timing chain tensioner arm (B).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- Install the timing chain tensioner and remove the pin (B).
Courtesy of HYUNDAI MOTOR AMERICA

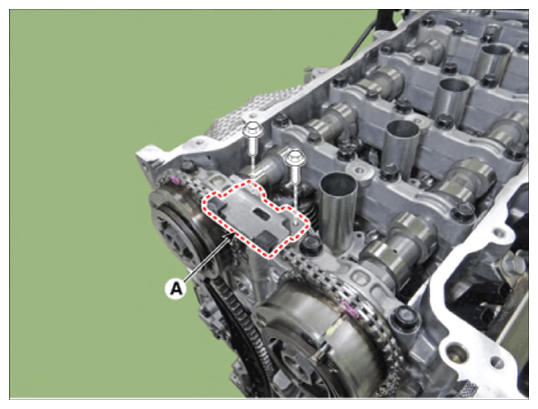

Install the cam to cam guide (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Check if the TDC mark at the front of intake and exhaust CVVT on right side 0° by turning crankshaft twice to clockwise.

Courtesy of HYUNDAI MOTOR AMERICA
Install the timing chain cover.
(Refer to "TIMING CHAIN COVER ")
Install the other parts in the reverse order of removal.
