Repair Procedures: Removal

  1. Shift the gear to "N".
  2. Remove the air cleaner assembly.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

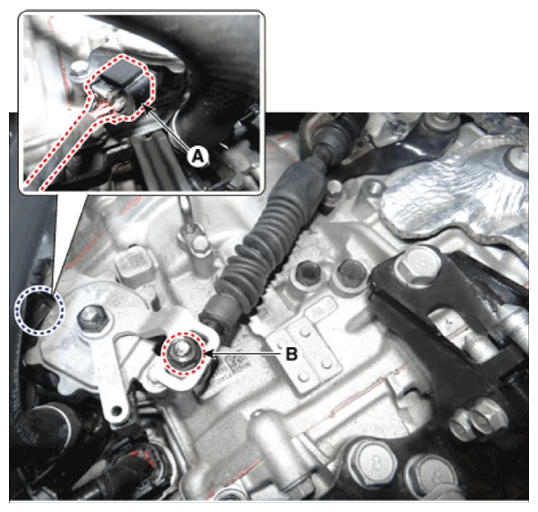

  3. Disconnect the position switch connector (A) and loosen the shift cable mounting nut (B).
    G14077243Courtesy of HYUNDAI MOTOR AMERICA

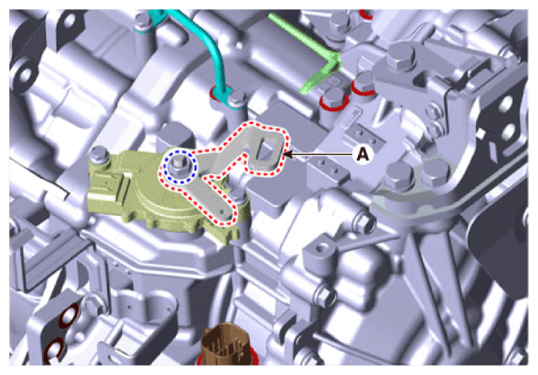

  4. Remove the manual control lever (A) and the washer after removing a nut.
    G14077244Courtesy of HYUNDAI MOTOR AMERICA

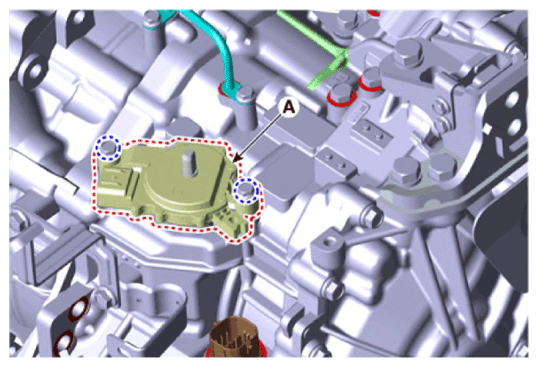

  5. Remove the position switch (A) after removing the bolts.
    G14077245Courtesy of HYUNDAI MOTOR AMERICA
