Home >> Hyundai >> 2021 >> Elantra Hybrid Limited >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System (HEV) >> Manifold Absolute Pressure Sensor (MAPS) >> Specifications >> Specification

Manifold Absolute Pressure Sensor (MAPS): Specifications: Specification

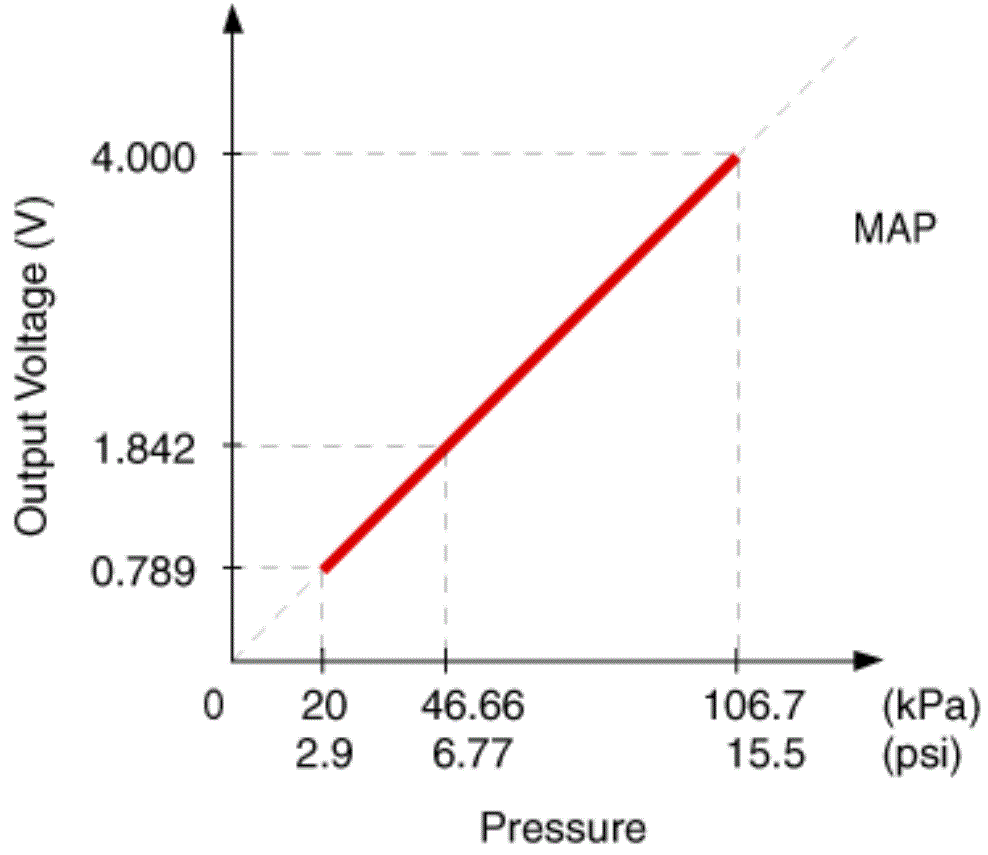

Pressure [kPa (kgf/cm2 , psi)] Output Voltage (V)
20.0 (0.20, 2.9) 0.79
46.7 (0.47, 6.77) 1.84
106.7 (1.09, 15.5) 4.212
G16077790Courtesy of HYUNDAI MOTOR AMERICA
