Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the battery negative (-) terminal.

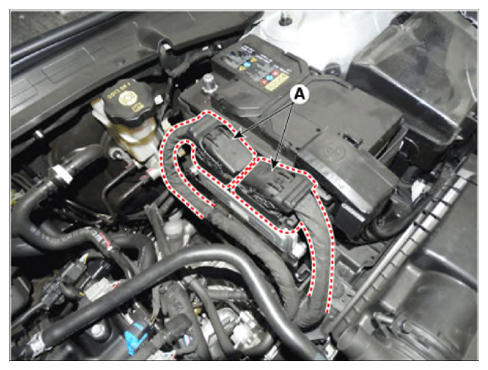

  2. Disconnect the ECM Connector (A).
    G14596332Courtesy of HYUNDAI MOTOR AMERICA

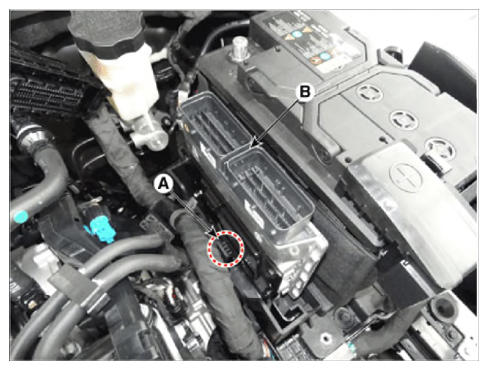

  3. Remove the ECM (B) after releasing the fixing hooks (A).
    G14596333Courtesy of HYUNDAI MOTOR AMERICA

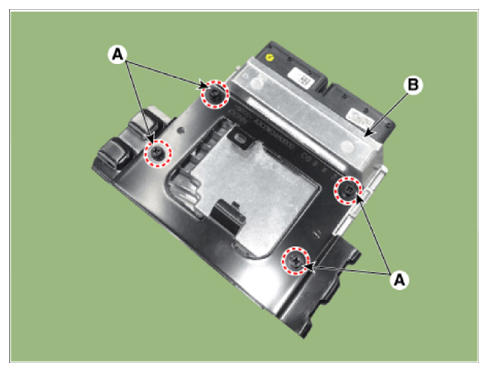

  4. Remove the ECM (B) after loosening the mounting bolts (A).

    ECM Mounting bolt:

    6.7 - 8.3 N.m (0.7 - 0.85 kgf.m, 5.1 - 6.1 lb-ft)

    G14596334Courtesy of HYUNDAI MOTOR AMERICA
