Electric WGT Control Actuator: Specifications: Specification: Notes

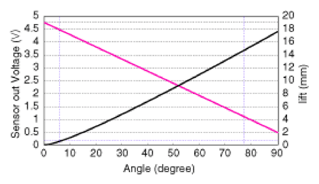

[EWGA Position Sensor]

Position	Output Voltage [V]	Operating Angle [°]	Range of Rod [mm], Reference
Mechanical Close end stop Position (MCP)	4.8	0	0
Electrical Close end stop Position (ECP)	4.2	12	1.8
Electrical Open end stop Position (EOP)	1	79	16
Mechanical Open end stop Position (MOP)	0.5	90	18
