Repair Procedures: Removal

NOTE:
  • Before removing position sensor, long press the "N" button (A) and position it at the "N".
    G14424356Courtesy of HYUNDAI MOTOR AMERICA
  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the battery and battery tray.

    (Refer to Engine Electrical System - "REMOVAL , and BATTERY TRAY ")

  3. Remove the air duct and the air cleaner assembly.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

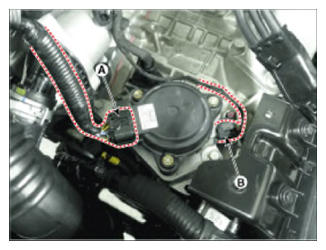

  4. Disconnect the position sensor connector (A).
  5. Disconnect the electronic shift actuator connector (B).
    G14424357Courtesy of HYUNDAI MOTOR AMERICA

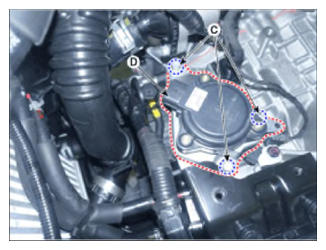

  6. Remove the electronic shift actuator (D) after removing the bolts (C).
    G14424358Courtesy of HYUNDAI MOTOR AMERICA

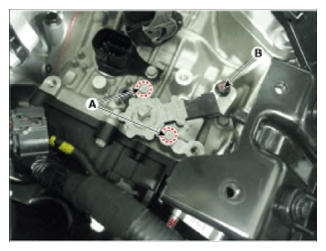

  7. Remove the position sensor (B) after removing the bolts (A).
    G14424359Courtesy of HYUNDAI MOTOR AMERICA
