Repair Procedures: Replacement
| Change | Capacity | Specifications | |
|---|---|---|---|
| Normal Use | Severe Use | Filled up to lower filler plug thread level. Gasoline 3.8L : 0.70 L ± 0.0325 L (0.18 U.S gal, 0.74 U.S qt, 0.62 lmp. qt) ± (0.01 U.S gal, 0.03 U.S qt, 0.03 lmp. qt) |
API GL-5, SAE75W/85517-15 Hypoid gear oil (SK HCT-5 75W/85 equivalent) |
| No service required | 120, 000 km (80, 000 miles) | ||
Severe driving conditions
- Driving in dusty, rough roads
- Driving in mountains areas
- Driving for patrol car, taxi, commercial car or vehicle towing
- Driving over 170 Km/h
* Transfer oil should be replaced if the transfer assembly is fall into the water.
- Remove the under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

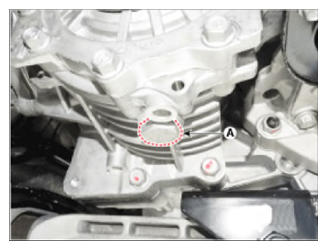

- Drain the transfer oil after loosening the drain plug (A).
- Install the drain plug with new gasket.
Tightening torque:
39.2 - 58.8 N.m (4.0 - 6.0 kgf.m, 28.9 - 43.4 lb-ft)

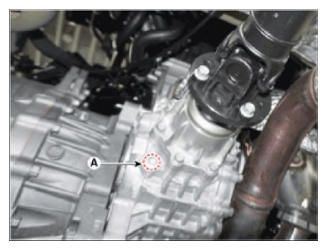

- Refill the transfer specified oil after loosening the filler plug (A).
Specified oil : API GL-5, SAE75W/85 Hypoid gear oil (SK HCT-5 75W/85 equivalent)
Capacity : Filled up to lower filler plug thread level.
Gasoline 3.8L : 0.70L ± 0.0325L
(0.18 U.S gal, 0.74 U.S qt, 0.62 lmp. qt) ± (0.01 U.S gal, 0.03 U.S qt, 0.03 lmp. qt)
- Install the filler plug with new gasket.
Tightening torque:
39.2 - 58.8 N.m (4.0 - 6.0 kgf.m, 28.9 - 43.4 lb-ft)
- Install the under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")
