Integrated Body Control Unit (IBU)

  1. Disconnect the negative (-) battery terminal.
  2. Remove the glove box housing.

    (Refer to Body - "GLOVE BOX ")

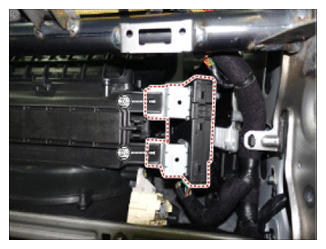

  3. Disconnect the IBU connector (A).

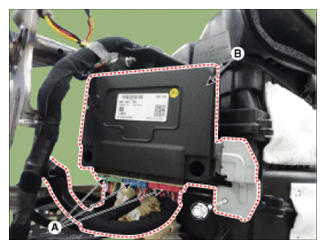

  4. Remove the IBU (B) after loosening mounting bolt and nuts.
    G14427236Courtesy of HYUNDAI MOTOR AMERICA
    G14427237Courtesy of HYUNDAI MOTOR AMERICA
