Home >> Hyundai >> 2021 >> Palisade Calligraphy, FWD >> Repair and Diagnosis >> Electrical >> Starter >> Engine Starting System >> Starter Relay >> Repair Procedures >> Inspection

Repair Procedures: Inspection

  1. Turn ignition switch OFF and disconnect the negative (-) battery terminal.
  2. Remove the fuse box cover.

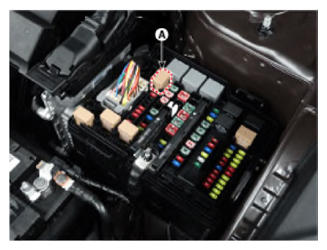

  3. Remove the starter relay (A).
    G14423665Courtesy of HYUNDAI MOTOR AMERICA

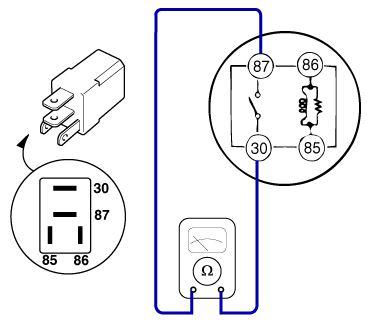

  4. Check for continuity between the terminals (30 and 87) using an ohmmeter.
    Terminal Resistance Measure
    30 - 87 1 MΩ or higher continuity between the terminals, replace the relay.
    G14423666Courtesy of HYUNDAI MOTOR AMERICA

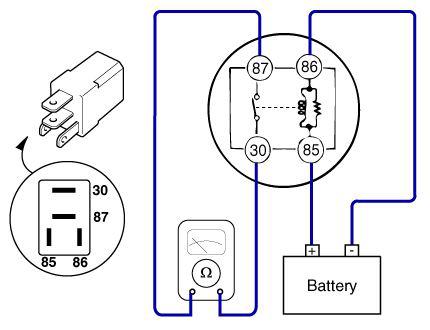

  5. Apply 12V to the terminal 85 and ground to the terminal 86 and then check for continuity between the terminals (30 and 87).
    Terminal Resistance Measure
    30 - 87 1 Ω or less continuity between the terminals, replace the relay.
    G14423667Courtesy of HYUNDAI MOTOR AMERICA
  6. Install the starter relay.
  7. Install the fuse box cover.
