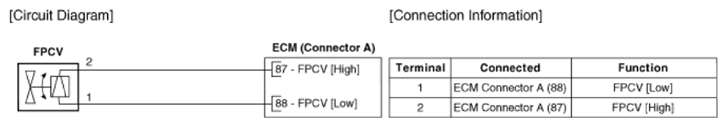

Home >> Hyundai >> 2021 >> Palisade Calligraphy, FWD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System >> Fuel Pressure Control Valve (FPCV) >> Schematic Diagrams >> Circuit Diagram
