Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.

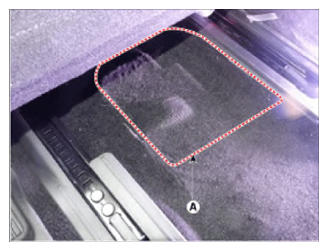

  2. Remove the rear floor carpet service cover (A).
    G14423910Courtesy of HYUNDAI MOTOR AMERICA

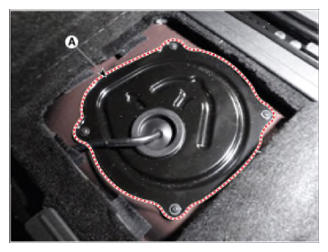

  3. Remove the fuel pump service cover (A) after loosening the mounting screws.
    G14423911Courtesy of HYUNDAI MOTOR AMERICA

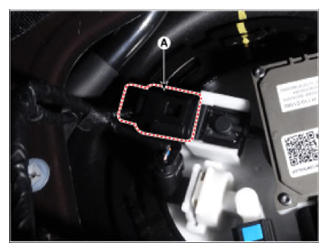

  4. Disconnect the fuel tank pressure sensor connector (A).
    G14423912Courtesy of HYUNDAI MOTOR AMERICA

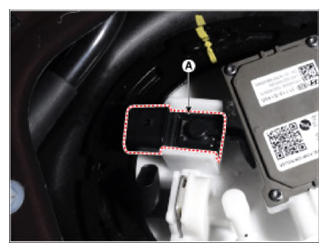

  5. Remove the fuel tank pressure sensor (A).
    G14423913Courtesy of HYUNDAI MOTOR AMERICA
