Toe adjustment

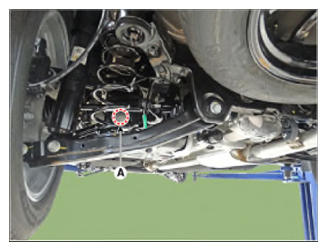

  1. Loosen the nut holding the assist arm cam bolt (A).
  2. Adjust rear toe by turning the rear assist arm cam bolt (A) clockwise or counterclockwise. Toe adjustment should be made by turning the right and left cam bolt by the same amount.

    Toe

    Total  : 0.2° ± 0.2°

    Individual  : 0.1° ± 0.1°

    G14426653Courtesy of HYUNDAI MOTOR AMERICA
  3. When completing the toe adjustment, tighten the nut to specified torque.

    Tightening torque:

    137.3 - 156.9 N.m (14.0 - 16.0 kgf.m, 101.3 - 115.7 lb-ft)
