Home >> Hyundai >> 2021 >> Palisade Calligraphy, FWD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle Control System >> Electric Shift Button >> Repair Procedures >> Removal

Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the console upper cover.

    (Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

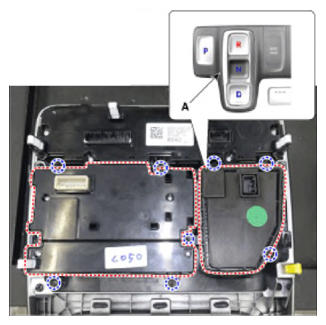

  3. Remove the electric shift button (A).
    G14424366Courtesy of HYUNDAI MOTOR AMERICA

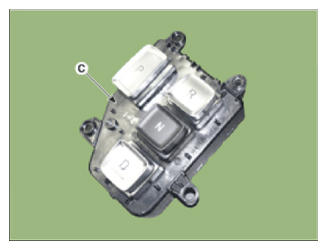

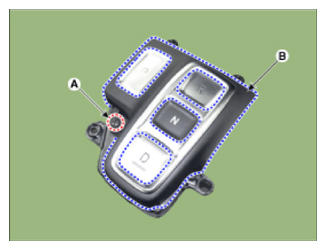

  4. Loosen the screw (A) and then disconnect the upper cover (B) with the shift button module (C)
    G14424367Courtesy of HYUNDAI MOTOR AMERICA
    G14424368Courtesy of HYUNDAI MOTOR AMERICA
