Home >> Hyundai >> 2021 >> Palisade Calligraphy, FWD >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Automatic Transaxle Control System >> SBW Control Unit (SCU) >> Repair Procedures >> Removal

Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.

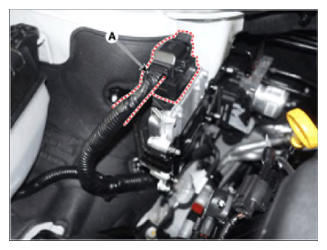

  2. Disconnect the connector (A).
    G14424370Courtesy of HYUNDAI MOTOR AMERICA

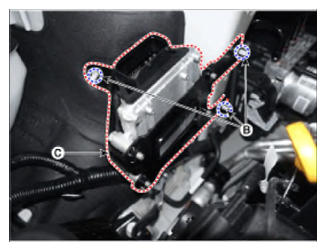

  3. Remove the SBW Control Unit (SCU) (C) after removing the nuts (B).
    G14424371Courtesy of HYUNDAI MOTOR AMERICA
