Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Remove the air cleaner assembly.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

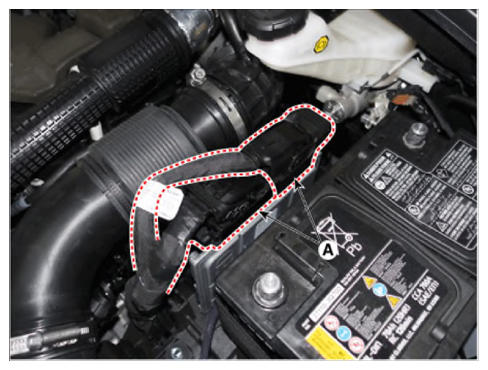

  3. Disconnect the ECM connector (A).
    G14537770Courtesy of HYUNDAI MOTOR AMERICA

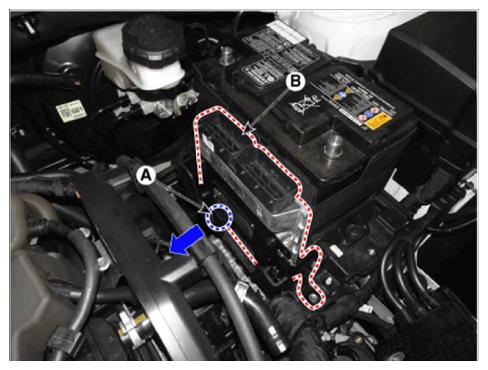

  4. Release the fixing hook (A), and then removing the ECM (B).
    G14537771Courtesy of HYUNDAI MOTOR AMERICA

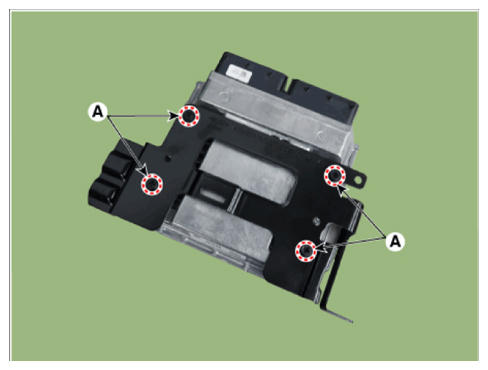

  5. Remove the ECM after loosening the mounting bolts (A).

    Tightening torque:  6.9 - 8.8 N.m (0.7 - 0.9 kgf.m, 5.1 - 6.5 lb-ft)

    G14537772Courtesy of HYUNDAI MOTOR AMERICA
