Accelerator Position Sensor (APS): Specifications: Specification

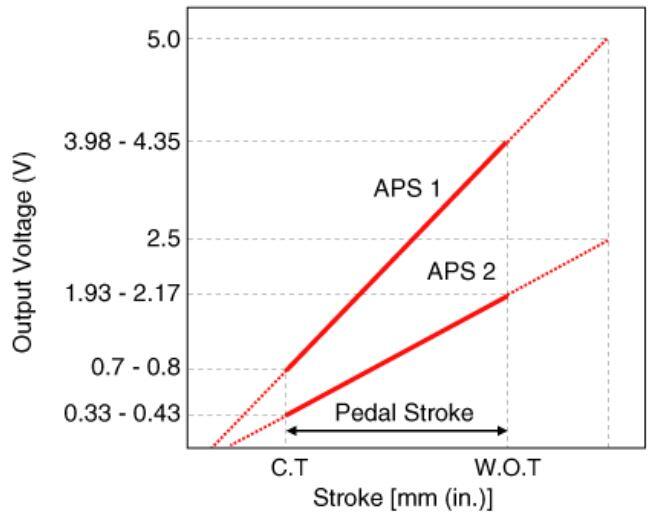

Accelerator Position Output Voltage (V)
APS1 APS2
C.T 0.7 - 0.8 0.325 - 0.425
W.O.T 3.98 - 4.22 1.93 - 2.17
G16112175Courtesy of HYUNDAI MOTOR AMERICA
