Repair Procedures: Removal
NOTE:
- If you replace the PCM, you must perform oil pressure characteristics back up & input (TCU Replacement). (Refer to Automatic Transaxle System - "AUTOMATIC TRANSAXLE CONTROL SYSTEM ")
CAUTION:
- When replacing the ECM, the vehicle equipped with the immobilizer must be performed procedure as below.
[In the case of installing used ECM]
- Perform "ECM Neutral mode" procedure with diagnostic tool.
(Refer to Body Electrical System - "IMMOBILIZER SYSTEM ")
- After finishing "ECM Neutral mode", perform "KEY TEACHING
" procedure with diagnostic tool.
(Refer to Body Electrical System - "IMMOBILIZER SYSTEM ")
[In the case of installing new ECM]
- Perform "KEY TEACHING
" procedure with diagnostic tool.
(Refer to Body Electrical System - "IMMOBILIZER SYSTEM ")
- Perform "ECM Neutral mode" procedure with diagnostic tool.
CAUTION:
- When replacing the ECM, the vehicle equipped with the smart key system (Button start) must be performed procedure as below.
- Perform
"ECM Neutral mode" procedure with diagnostic tool.
(Refer to Body Electrical System - "SMART KEY ")
- After finishing "ECM Neutral mode", insert the key (or press the start button) and turn it to the IGN ON and OFF position. Then the ECM learns the smart key information automatically.
[In the case of installing used ECM]
[In the case of installing new ECM]
- Insert the key (or press the start button) and turn it to the IGN ON and OFF position. Then the ECM learns the smart key information automatically.
- Perform
"ECM Neutral mode" procedure with diagnostic tool.
- Turn ignition switch OFF and disconnect the positive (+) battery cable.

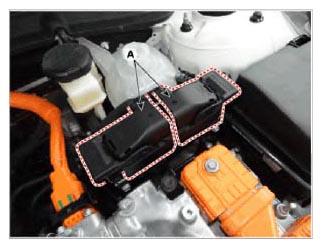

- Disconnect the ECM Connector (A).

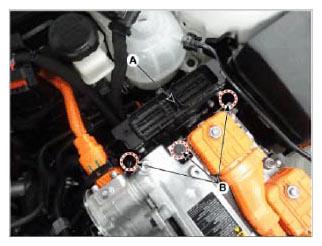

- Remove the ECM bracket assembly (A) after loosening mounting bolt (B).
ECM Bracket mounting bolt:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

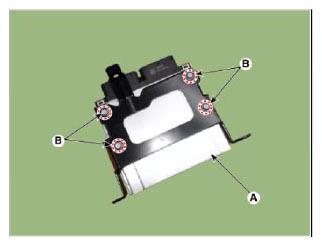

- Remove the ECM (A) from the bracket after loosening mounting bolt (B).
ECM Mounting bolt:
6.9 - 8.3 N.m (0.7 - 0.85 kgf.m, 5.1 - 6.1 lb.ft)
