Home >> Hyundai >> 2021 >> Tucson Ultimate, FWD >> Repair and Diagnosis >> Engine Performance >> Ignition System >> Ignition System - 2.4L >> Ignition Coil >> Troubleshooting >> Connector Assembly Status Test >> Notes

Connector Assembly Status Test: Notes

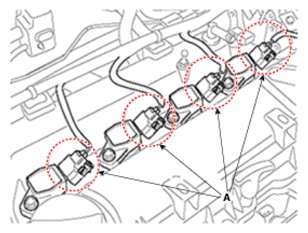

  1. Remove the connector (A) and reinstall it.
    G13034199Courtesy of HYUNDAI MOTOR AMERICA

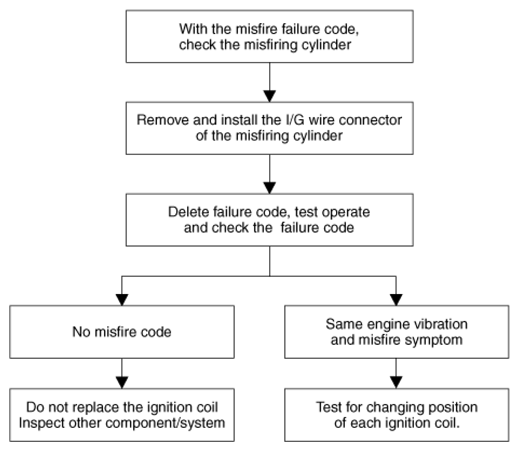

    G13034200Courtesy of HYUNDAI MOTOR AMERICA
