Repair Procedures: Installation

[Gasoline 2.0, 2.4]

  1. To install, reverse the removal procedures.
NOTE:

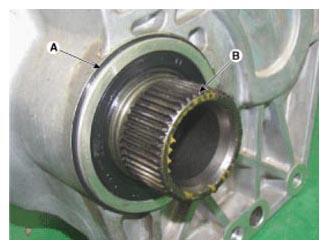

  1. Be careful not to damage the O-ring (A). If the O-ring is damaged, replace with a new one.
  2. Smear and cover splines (B) with molybdenum type high pressure grease.

    GREASE SPL-1 or equivalent

    G13021351Courtesy of HYUNDAI MOTOR AMERICA
  3. Apply grease around the oil seal (C).
    G13021352Courtesy of HYUNDAI MOTOR AMERICA
  4. Install the propeller shaft to be near runout marking (Transfer Assembly 1EA, Propeller Shaft 1EA) each other.
G13021353Courtesy of HYUNDAI MOTOR AMERICA

[Gasoline 1.6]

  1. To install, reverse the removal procedures.
NOTE:
  1. Be careful not to damage the O-ring (A). If the O-ring is damaged, replace with a new one.
  2. Smear and cover splines (B) with molybdenum type high pressure grease.

    GREASE SPL-1 or equivalent

    G13021354Courtesy of HYUNDAI MOTOR AMERICA
  3. Install the propeller shaft to be near runout marking (Transfer Assembly 1EA, Propeller Shaft 1EA) each other.
G13021355Courtesy of HYUNDAI MOTOR AMERICA
