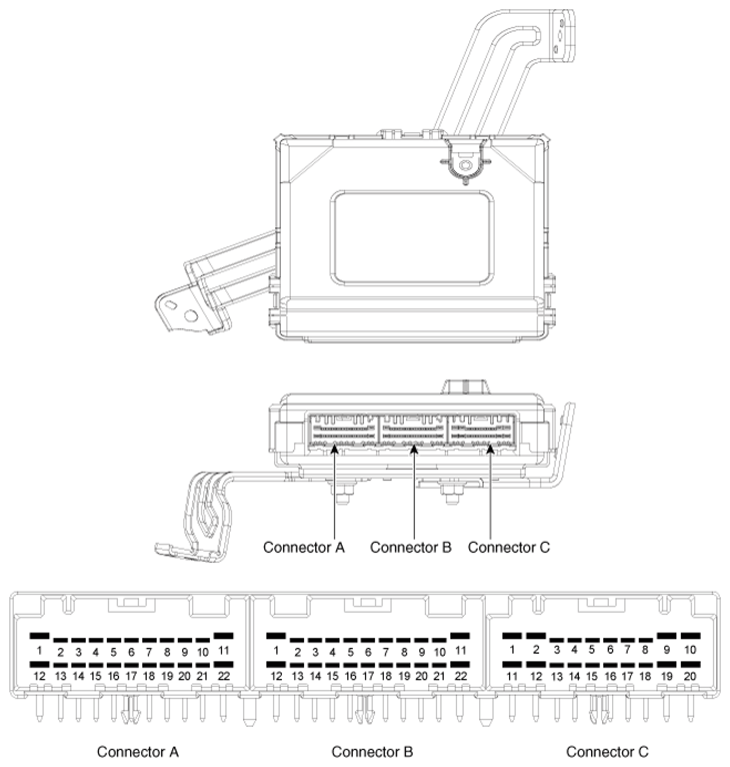

| 1 |
BATT (+) |
IGN2 relay_output |
Immoblizer antenna power |
| 2 |
BATT (+) |
IGN1 relay_output |
Wheel speed sensor_input |
| 3 |
Interior antenna 1_GND |
- |
SSB switch1 signal_input |
| 4 |
Bumpper antenna_GND |
- |
- |
| 5 |
Interior antenna 2_GND |
ESCL communication |
ESCL Unlock switch |
| 6 |
Assist door antenna_GND |
EMS communication |
'P' signal input |
| 7 |
- |
B-CAN (High) |
Brake switch_input |
| 8 |
Driver's door antenna_GND |
B-CAN (Low) |
IGN2 signal_input |
| 9 |
- |
- |
IGN1 signal_input |
| 10 |
SSB Illumination (+) |
- |
Starter relay_output |
| 11 |
External buzzer |
- |
Immoblizer antenna GND |
| 12 |
ESCL Power |
ACC relay_output |
RPM_Input |
| 13 |
- |
- |
SSB switch2 signal_input |
| 14 |
Interior antenna 1_Power |
GND |
Driver's door switch signal_input |
| 15 |
Bumpper antenna_Power |
- |
Assist door switch signal_input |
| 16 |
Interior antenna 2_Power |
SSB LED (ACC) |
Start signal feedback_input |
| 17 |
Assist door antenna_Power |
SSB LED (IGN) |
Stop lamp fuse signal_input |
| 18 |
- |
- |
ACC signal_input |
| 19 |
Driver's door antenna_Power |
SSB LED (OFF) |
- |
| 20 |
- |
SSB Illumination (-) |
GND |
| 21 |
ESCL Enable |
Immoblizer indicator |
|
| 22 |
ESCL GND |
LF search signal |
