Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the Driver Crash Pad Lower Panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

  3. Remove the Steering Column Upper and Lower Shroud Panel.

    (Refer to Body - "STEERING COLUMN SHROUD PANEL ")

  4. Remove the Multifunction Switch.

    (Refer to Body Electrical System - "MULTIFUNCTION SWITCH ")

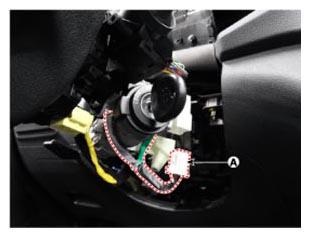

  5. Remove the key warning/immobilizer connector (A).
    G13033454Courtesy of HYUNDAI MOTOR AMERICA
  6. Insert key and turn it to ACC position.

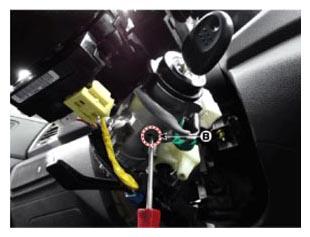

  7. Pushing lock pin (A) with the awl.
    G13033455Courtesy of HYUNDAI MOTOR AMERICA
  8. Remove the key lock cylinder (A).

    B: Key warning switch

    C: Ignition switch connector

    G13033456Courtesy of HYUNDAI MOTOR AMERICA

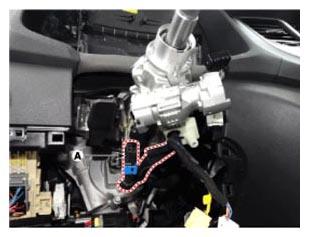

  9. Disconnect the ignition switch connector (A).
    G13033457Courtesy of HYUNDAI MOTOR AMERICA

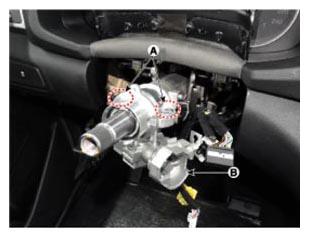

  10. Remove the ignition switch (A) after loosening the mounting bolts.
