Assist Power Window Switch

  1. Disconnect the negative (-) battery terminal.
  2. Remove the assist door trim.

    (Refer to Body - "FRONT DOOR TRIM ")

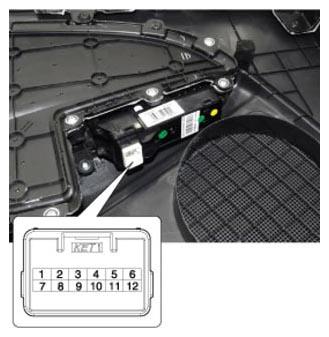

  3. Disconnect the power mirror switch connector from the door trim.
    G13030487Courtesy of HYUNDAI MOTOR AMERICA

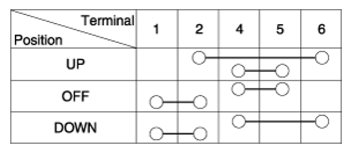

  4. Check for continuity between the terminals in each switch position as shown below.
    G13030488Courtesy of HYUNDAI MOTOR AMERICA
