Repair Procedures: Replacement: Removal
CAUTION:
- Put on gloves to prevent hand injuries.
NOTE:
- Use seat covers to avoid damaging any surfaces.
- Remove the Front Pillar Trim.
(Refer to Interior Trim - "FRONT PILLAR TRIM ")
- Remove the Cowl Top Cover.
(Refer to "COWL TOP COVER ")
- Using a cutter (A) knife, carefully remove the windshield glass molding.
Information
- Use the cutter with a 20 to 30 cm-long blade.

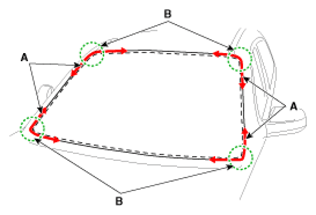

- Cut off the sealant on the edge (B) while pulling the piano wire (A) to the left and right.CAUTION:
- Put on gloves to protect your hands.
- Heat may occur when working on the wires.
- Be careful not to burn your hands.
- Be careful not to disconnect the piano wire.

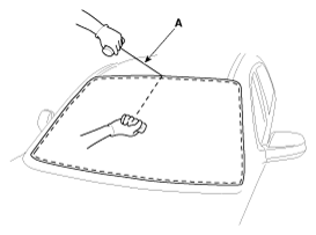

- Put in a piano wire (A) through the corner of the windshield glass and insert wire grips into both ends of the wire.

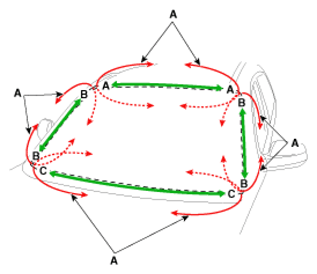

- Cut off the sealant on (A-A), (B-B), (C-C), while pulling a piano wire (A) to the left and right.CAUTION:
- Put on gloves to protect your hands.
- Heat may occur when working on the wires. Be careful not to burn your hands.
- Be careful not to disconnect the piano wire.

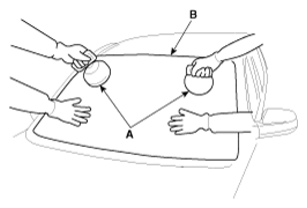

- Remove the windshield glass (B) carefully using the glass holder (A).
