Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the negative (-) battery cable.

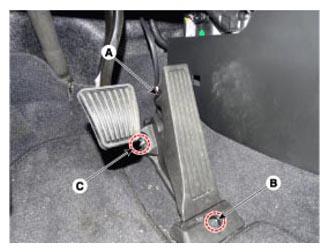

  2. Disconnect the accelerator position sensor connector (A).
  3. Remove the installation bolt (B), the nuts (C) and then remove the accelerator pedal module.
    G13020971Courtesy of HYUNDAI MOTOR AMERICA
