Repair Procedures: Disassembly

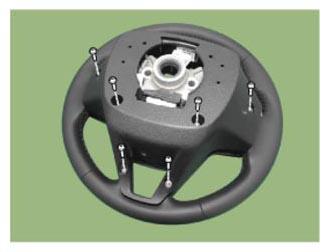

  1. Loosen the screw and then remove the lower cover.
    G13028749Courtesy of HYUNDAI MOTOR AMERICA

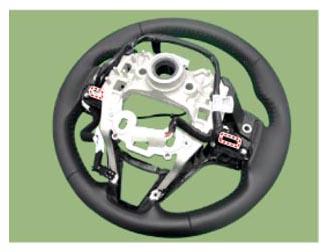

  2. Disconnect the connector and then remove the wiring.
    G13028750Courtesy of HYUNDAI MOTOR AMERICA

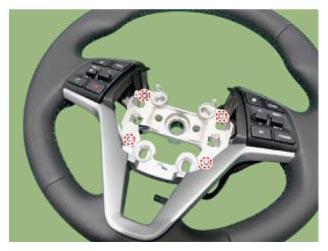

  3. Loosen the screw and then remove the remote control switch assembly.
    G13028751Courtesy of HYUNDAI MOTOR AMERICA

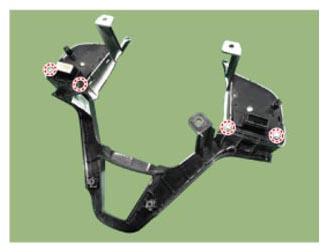

  4. Loosen the screw and then remove the remote control switch.
    G13028752Courtesy of HYUNDAI MOTOR AMERICA
  5. Reassembly is the reverse of the disassembly.
