Repair Procedures: Inspection

  1. Using the GDS, check the input/output speed sensor waveforms.
    • Turn OFF the ignition switch.
    • Connect the GDS to the Data Link Connector (DLC) on the lower crash pad.
    • Ignition "ON" & Engine "ON".
    • Check the input/output speed sensor waveforms at high speed and low speed.

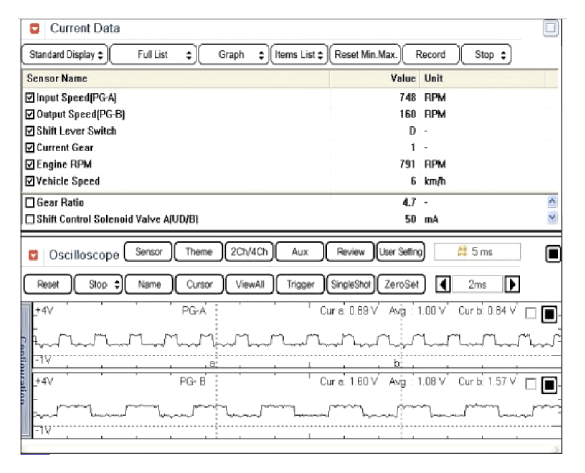

    G13055931Courtesy of HYUNDAI MOTOR AMERICA

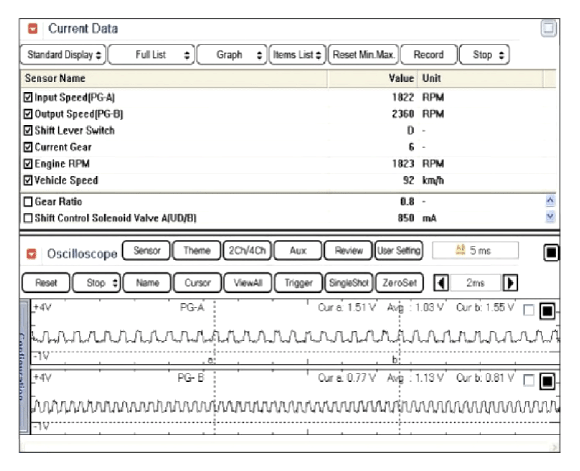

    G13055932Courtesy of HYUNDAI MOTOR AMERICA
