Home >> Hyundai >> 2021 >> Veloster 2.0, Automatic Trans >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle Control System - 2.0L >> Shift Lever >> Components & Components Location >> Components

Components & Components Location: Components

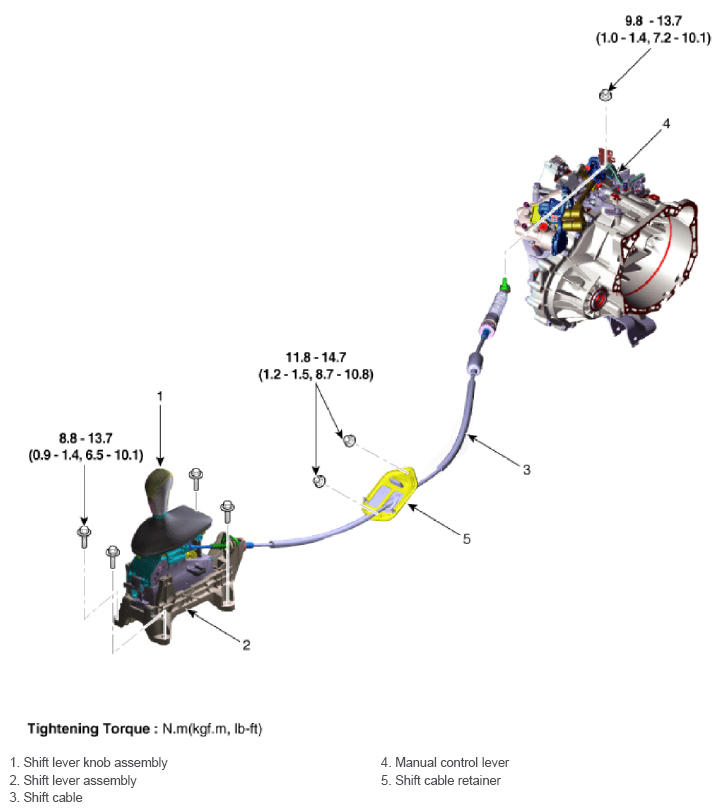

Fig 1: Shift Lever Components Location With Torque Specification

G13055966

Courtesy of HYUNDAI MOTOR AMERICA
