Repair Procedures: Installation

  1. To install, reverse of replacement procedure.
    CAUTION:
    1. Before installing, check that the shift lever and manual control lever are placed in the "N" position.
    2. When assembling shift cable, the projection (A) must face upwards.
      G13055971Courtesy of HYUNDAI MOTOR AMERICA

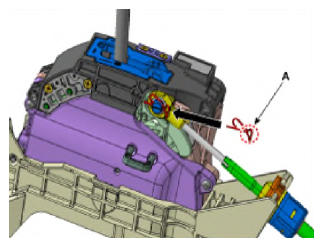

    3. When assembling the snap pin, be careful about the correct direction.
      • The band portion (A) must point to the front of the vehicle.
      • The band portion (A) must point outwards.
      G13055972Courtesy of HYUNDAI MOTOR AMERICA
