Home >> Hyundai >> 2021 >> Veloster 2.0, Standard Trans >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Manual Transaxle Control System - 2.0L >> Control Cable >> Components & Components Location >> Components

Components & Components Location: Components

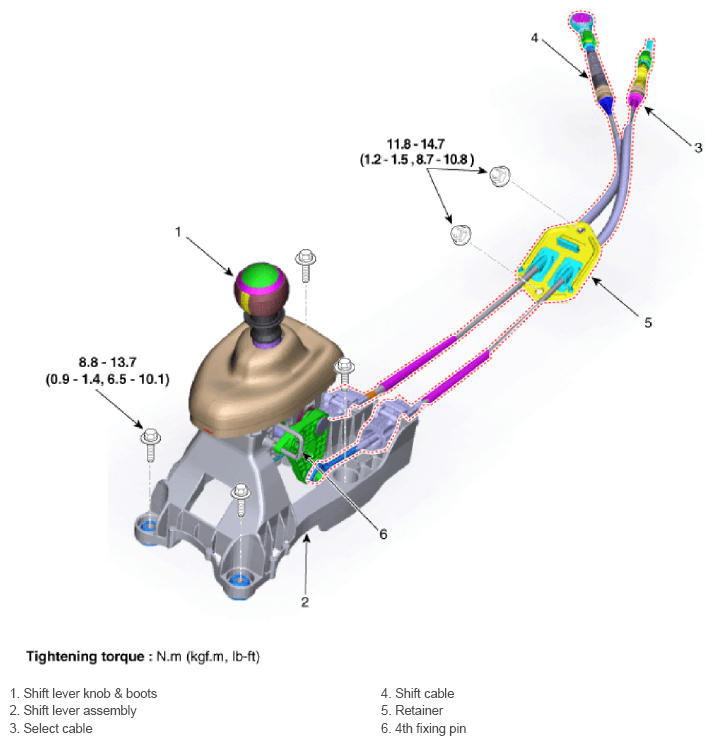

Fig 1: Control Cable Components Location With Torque Specification

G13055690

Courtesy of HYUNDAI MOTOR AMERICA
