Repair Procedures: Disassembly

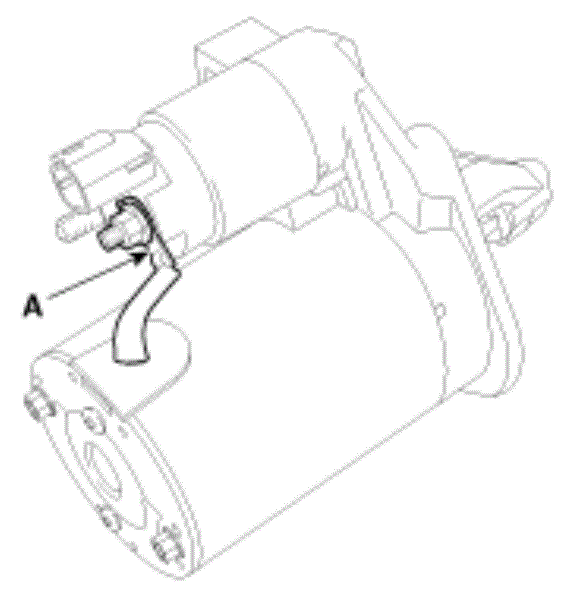

1. Disconnect the M-terminal (A) on the magnet switch assembly.

   Courtesy of HYUNDAI MOTOR AMERICA

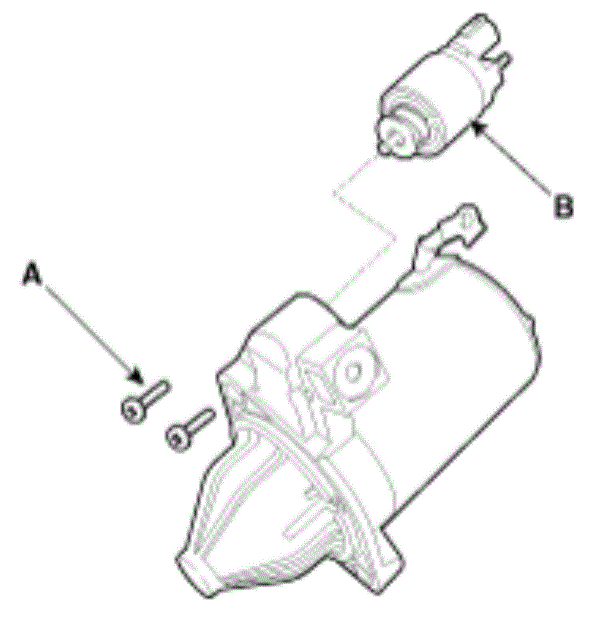

2. After loosening the 2 screws (A), detach the magnet switch assembly (B).

   Courtesy of HYUNDAI MOTOR AMERICA

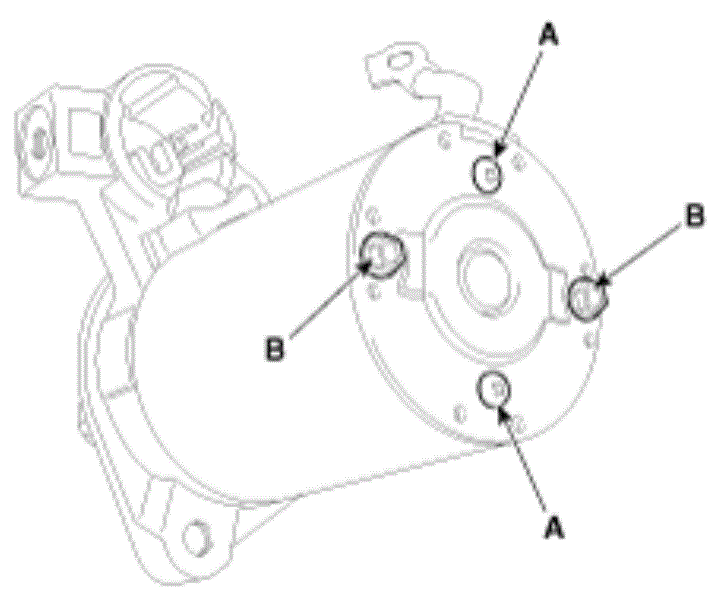

3. Loosen the brush holder mounting screws (A) and the trough bolts (B).

   Courtesy of HYUNDAI MOTOR AMERICA

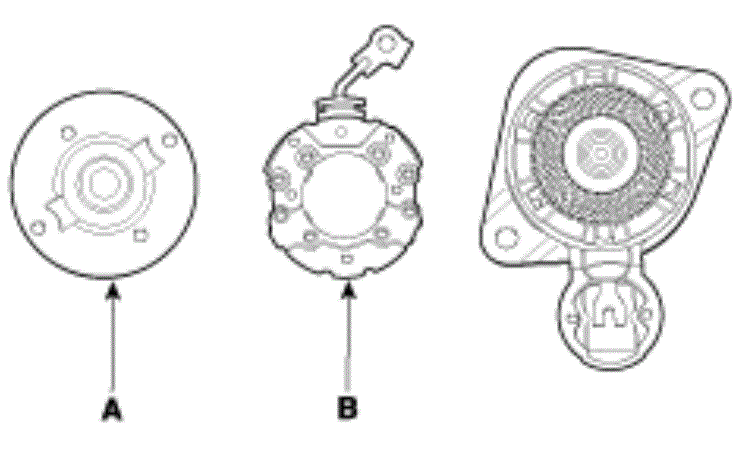

4. Remove the rear bracket assembly (A) and brush holder assembly (B).

   Courtesy of HYUNDAI MOTOR AMERICA

5. Remove the yoke assembly (A).

   Courtesy of HYUNDAI MOTOR AMERICA

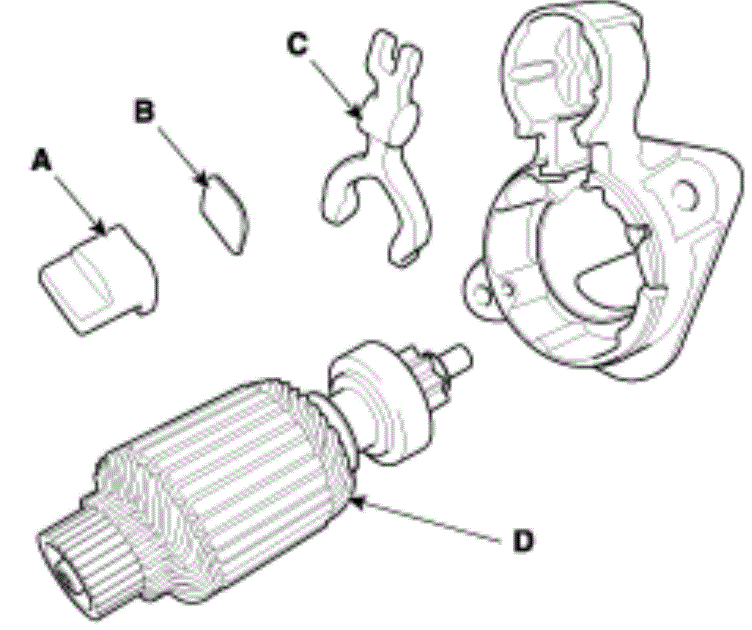

6. Remove the packing (A), lever plate (B), lever (C), armature assembly (D).

   Courtesy of HYUNDAI MOTOR AMERICA

   NOTE:

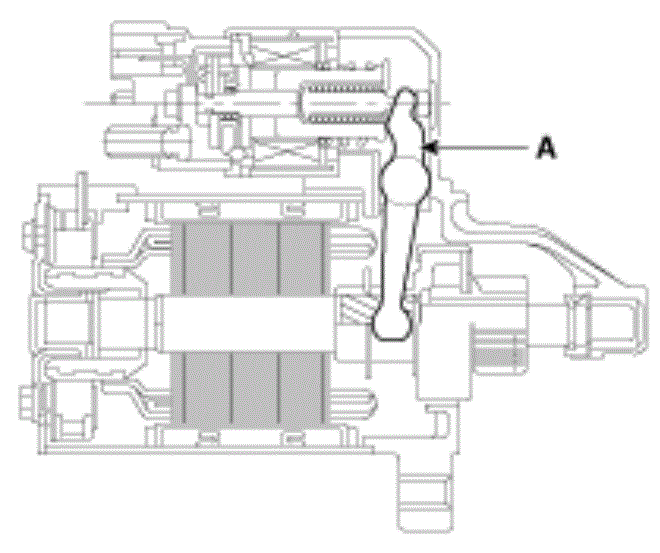

   • Beware the direction of lever (A).

   Courtesy of HYUNDAI MOTOR AMERICA

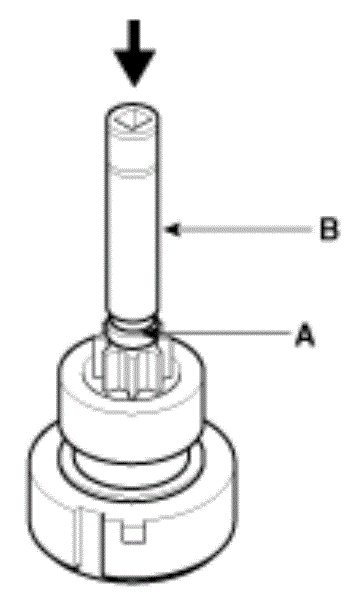

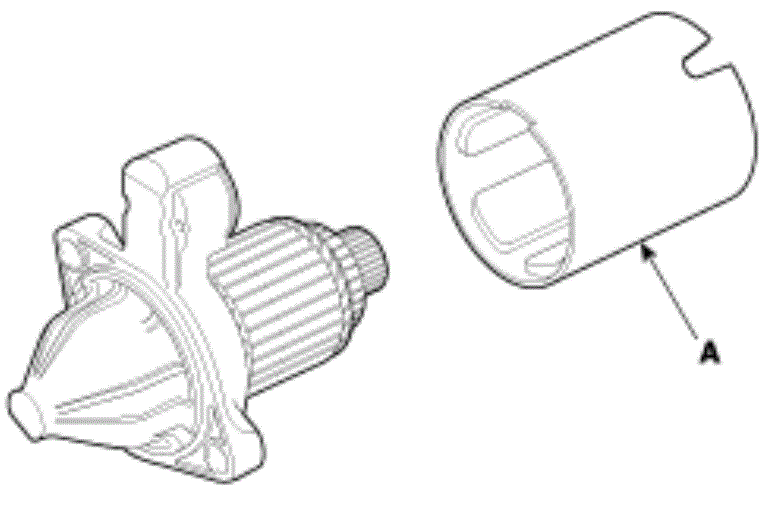

7. Press the stopper (A) using a socket (B).

   Courtesy of HYUNDAI MOTOR AMERICA

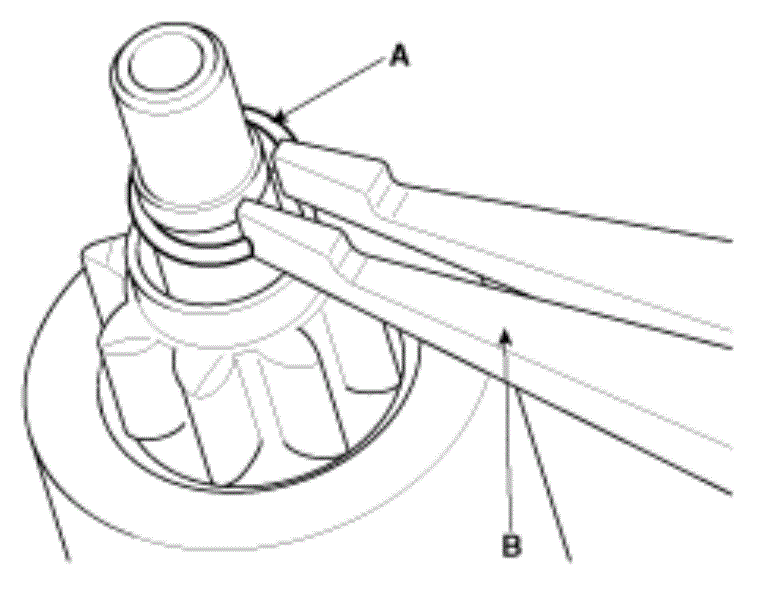

8. After removing the stop ring (A) using stopper pliers (B).

   Courtesy of HYUNDAI MOTOR AMERICA

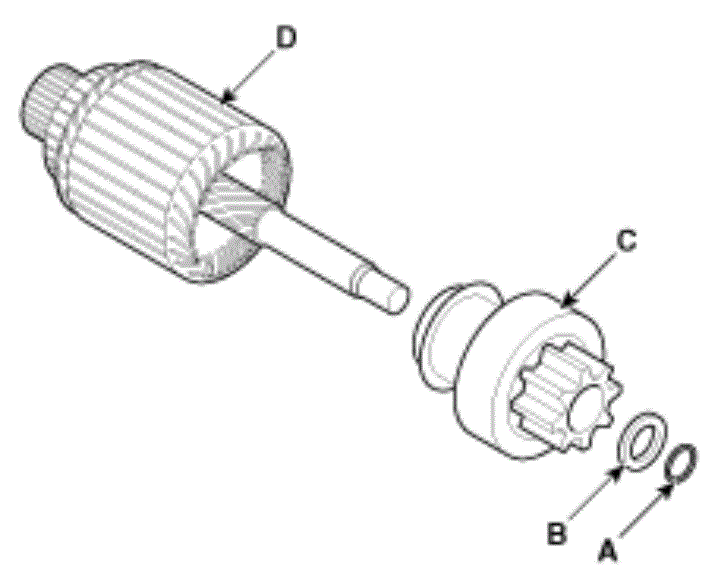

9. Remove the stop ring (B), stopper (A), overrunning clutch (C) and armature (D).

   Courtesy of HYUNDAI MOTOR AMERICA

Information

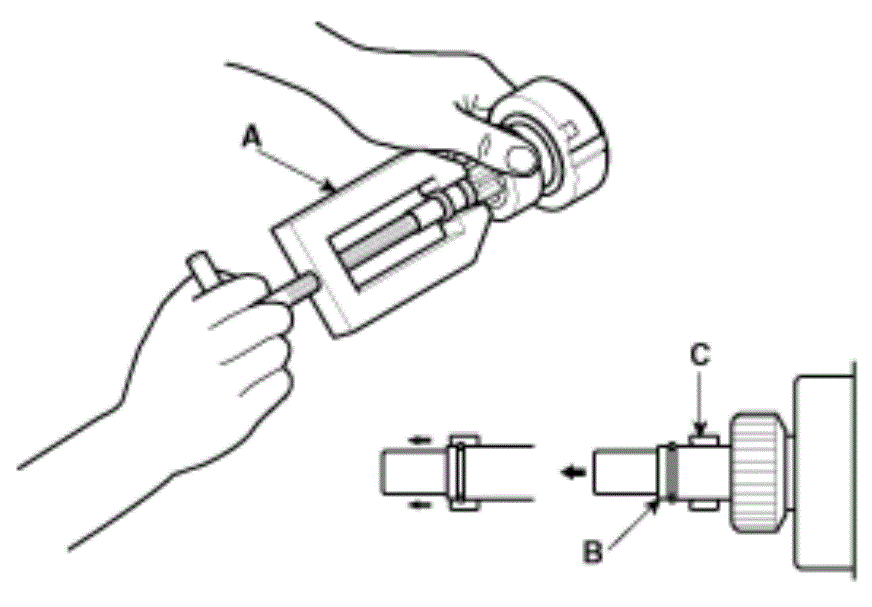

• Using a suitable pulling tool (A), pull the overrunning clutch stopper (C) over the stop ring (B).

  Courtesy of HYUNDAI MOTOR AMERICA
