Home >> Hyundai >> 2021 >> Veloster N Automatic DCT Trans >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Dual Clutch Control System >> Shift Lever >> Components And Components Location >> Components

Components And Components Location: Components

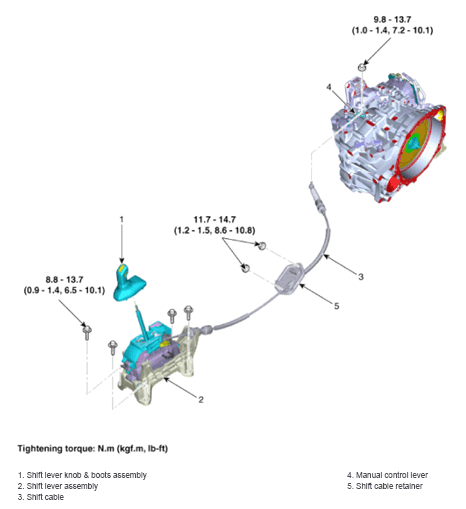

Fig 1: Shift Lever Components Location With Torque Specification

G15474919

Courtesy of HYUNDAI MOTOR AMERICA
