Repair Procedures: Removal

  1. Make sure vehicle does not roll before setting shift lever to "N" position.
  2. Remove the air cleaner assembly and air duct.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

  3. Remove the battery and battery tray.

    (Refer to Engine Electrical System - "BATTERY ")

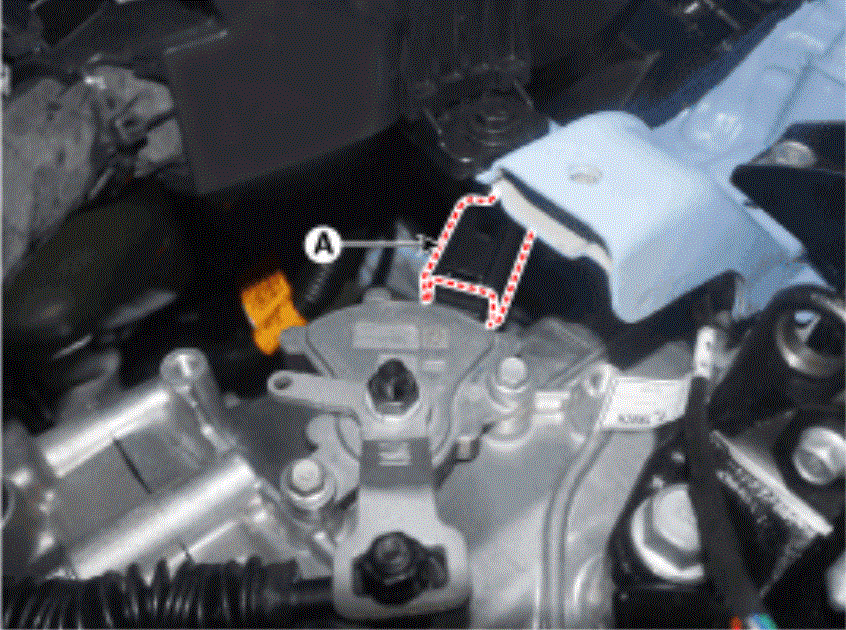

  4. Disconnect the position switch connector (A).
    G15474946Courtesy of HYUNDAI MOTOR AMERICA

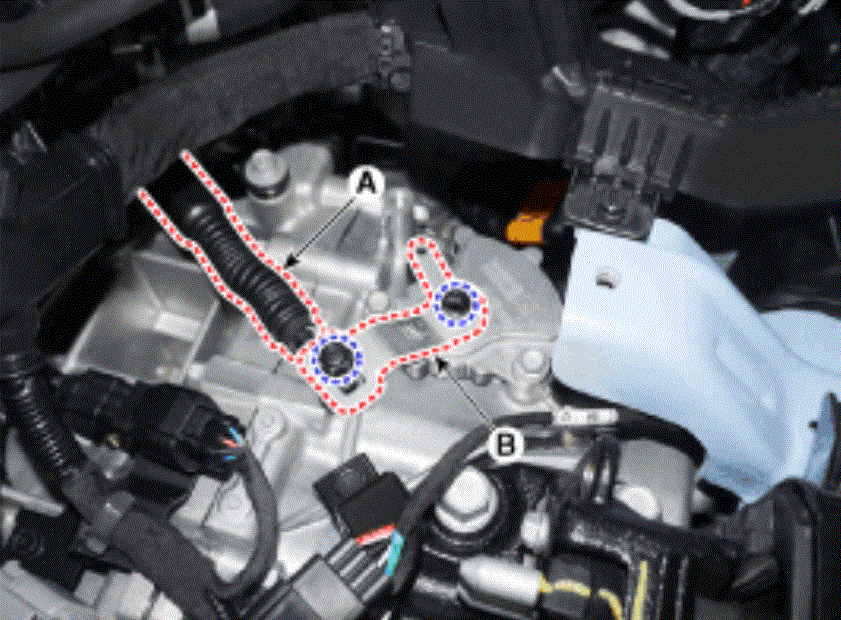

  5. Loosen the nut and then removing the shift cable (A) and the manual lever (B).
    G15474947Courtesy of HYUNDAI MOTOR AMERICA

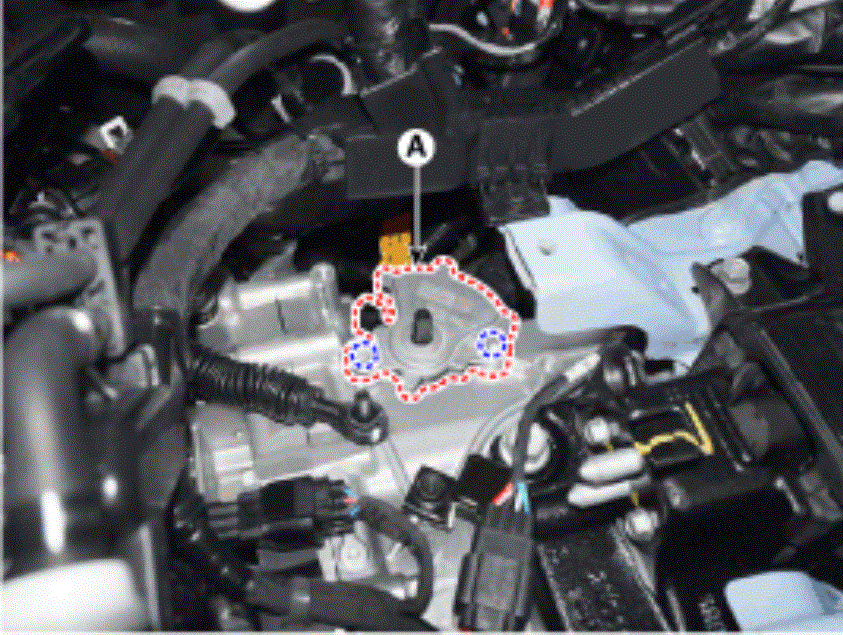

  6. Loosen the bolts and then removing the position switch (A).
    G15474948Courtesy of HYUNDAI MOTOR AMERICA
