Home >> Hyundai >> 2021 >> Veloster N Automatic DCT Trans >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Dual Clutch Control System >> Shift Cable >> Repair Procedures >> Removal

Repair Procedures: Removal

  1. Move the shift lever to "NI".
  2. Turn ignition OFF switch and the disconnect the negative (-) battery cable.
  3. Remove the air duct and the air cleaner assembly.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

  4. Battery and battery tray.

    (Refer to Engine Electrical System - "BATTERY ")

  5. Remove the engine control module (ECM).

    (Refer to Engine Control System - "ECM ")

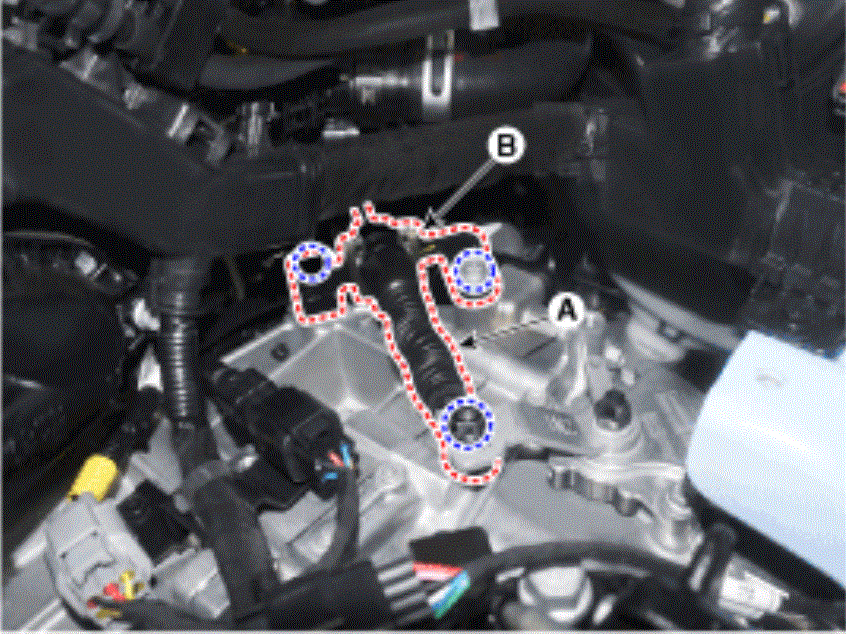

  6. Loosen the nut (B) and then separate the shift cable (A).
    G15474927Courtesy of HYUNDAI MOTOR AMERICA

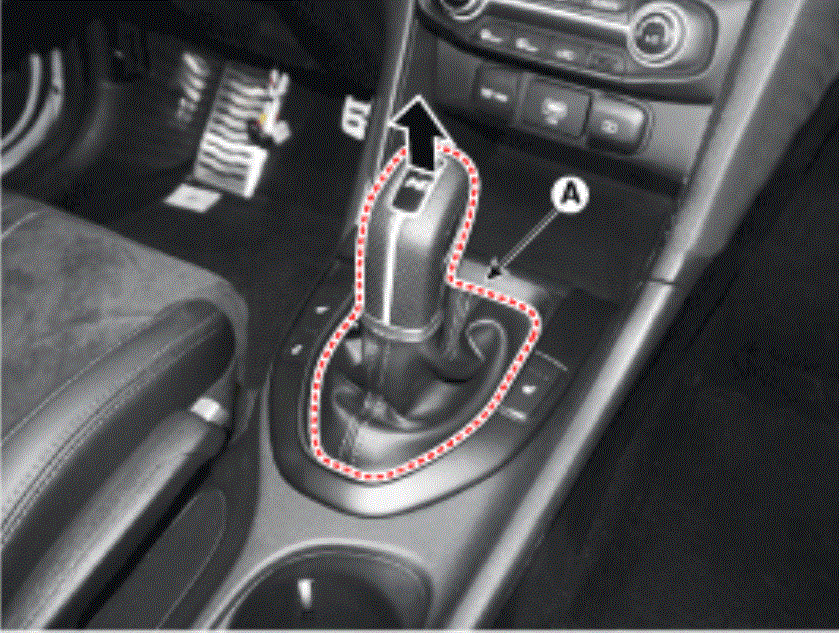

  7. Remove the shift knob & boots (A).
    G15474928Courtesy of HYUNDAI MOTOR AMERICA
  8. Remove the floor console assembly.

    (Refer to Body (Interior and Exterior) - "FLOOR CONSOLE ")

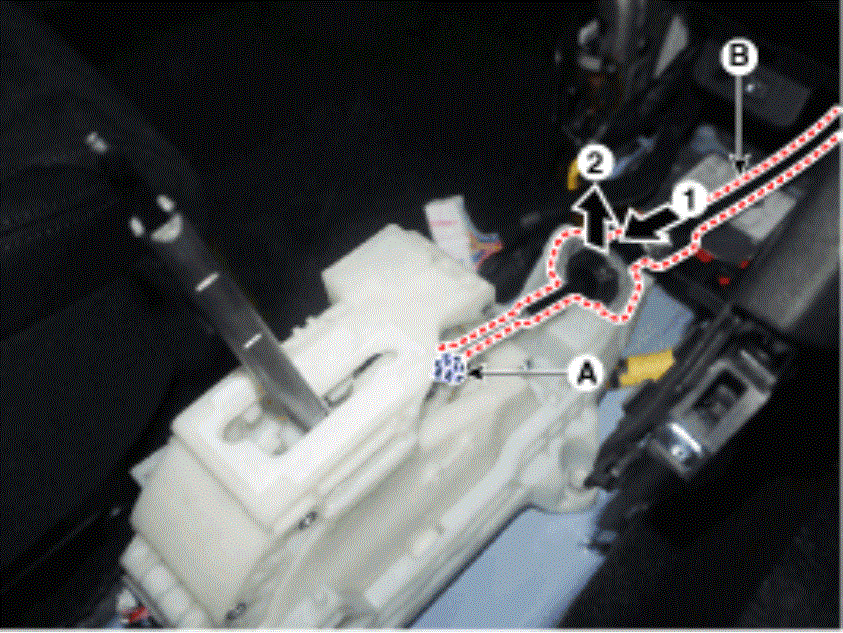

  9. Remove the snap pin (A) and then separate the shift cable (B).
    G15474929Courtesy of HYUNDAI MOTOR AMERICA

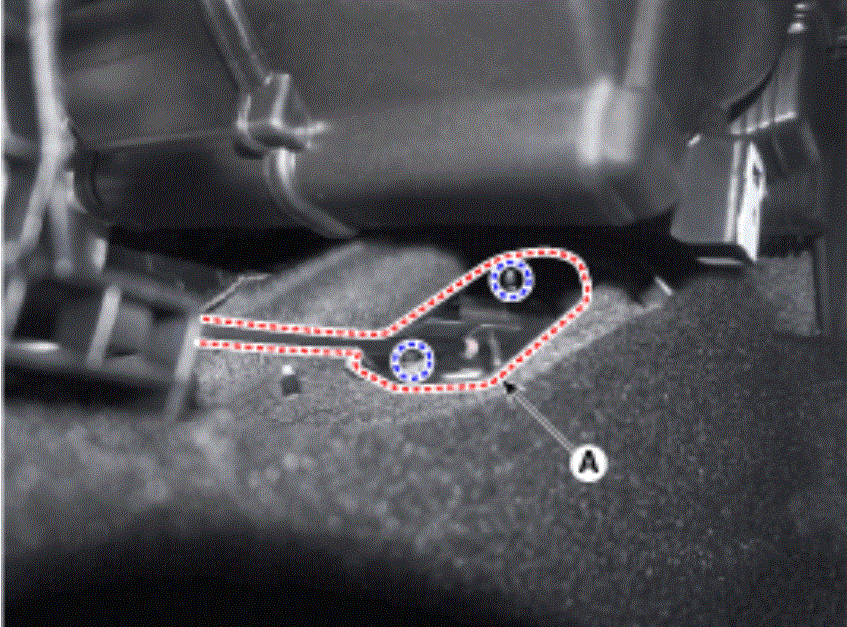

  10. Loosen the nut and then removing the cable retainer (A).
    G15474930Courtesy of HYUNDAI MOTOR AMERICA
  11. Remove the control cable assembly from the vehicle.
