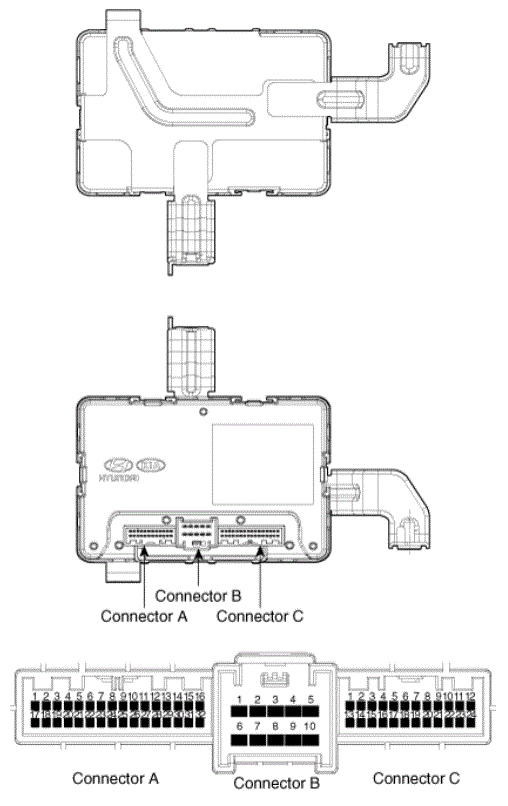

| 1 |
- |
GND_Power 2 |
ESCL Enable_output |
| 2 |
"P"_input/Clutch switch_input |
LF search in put g ON_output |
SSB IGN illumination_output |
| 3 |
Brake switch_input |
ESCL (-)_output |
SSB ACC illumination _output |
| 4 |
Start switch feedback_input |
- |
- |
| 5 |
- |
Battery (+)_signal |
Passenger's door outside handle antenna _input |
| 6 |
- |
GND_Power 1 |
Driver's door outside handle antenna _output |
| 7 |
- |
- |
Rear antenna _output |
| 8 |
- |
ESCL (+)_output |
Bumper antenna output |
| 9 |
- |
- |
Interior Antenna 2 GND _output |
| 10 |
- |
Battery (+)_power |
Interior Antenna 1 GND_output |
| 11 |
- |
|
IMMO Antenna_output |
| 12 |
ESCL unlock switch_input |
|
- |
| 13 |
Wheel speed sensor_input |
|
Exterior Buzzer_output |
| 14 |
- |
|
IGN1 Relay_output |
| 15 |
RPM_input |
|
IGN2 Relay_output |
| 16 |
IGN 1 |
|
ACC Relay_output |
| 17 |
ACC |
|
Passenger's door outside handle power_output |
| 18 |
IGN 2 |
|
Driver's door outside handle power output |
| 19 |
B CAN (Low) |
|
Rear Antenna power_output |
| 20 |
B CAN (High) |
|
Bumper antenna powoer_output |
| 21 |
C CAN (High) |
|
Interior 2 Antenna power_output |
| 22 |
C CAN (Low) |
|
Interior 1 Antenna power_output |
| 23 |
SSB switch 2_input |
|
|
| 24 |
Passenger's door outside handle switch_input |
|
|
| 25 |
Driver's door outside handle switch (input) |
|
|
| 26 |
SSB switch 1_input |
|
|
| 27 |
- |
|
|
| 28 |
EMS_COM |
|
|
| 29 |
ESCL_COM |
|
|
| 30 |
Starter relay output |
|
|
| 31 |
Start Stop Button (SSB) illumination (+)_output |
|
|
| 32 |
Start Stop Button (SSB) illumination (-)_output |
|
|
