Repair Procedures: Inspection

  1. Turn ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Remove the fuse box cover.

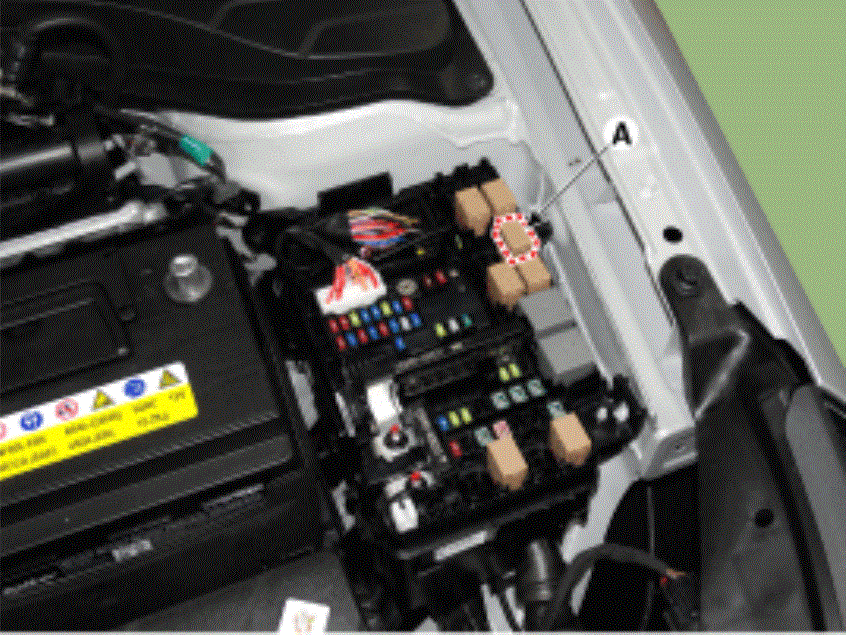

  3. Remove the starter relay (A).
    G15471941Courtesy of HYUNDAI MOTOR AMERICA

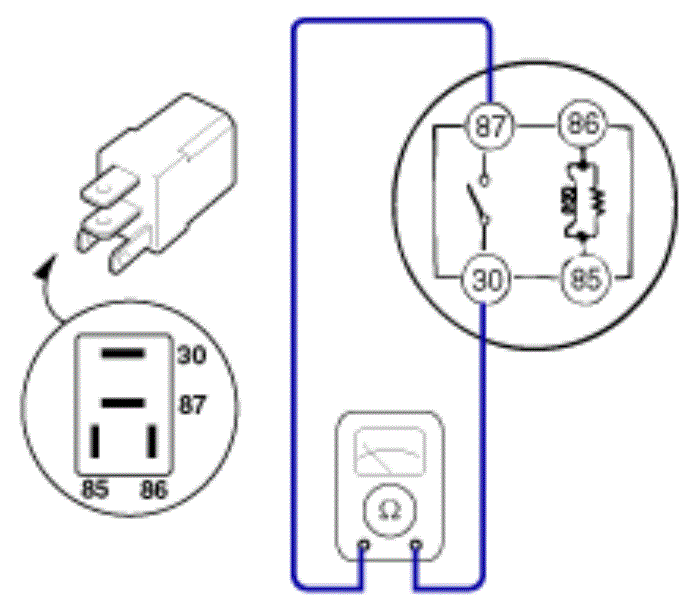

  4. Check for continuity between the terminals (30 and 87) using an ohmmeter.
    Terminal Resistance Measure
    30 - 87 1MΩ or higher If there is continuity between the terminals, replace the relay.
    G15471942Courtesy of HYUNDAI MOTOR AMERICA

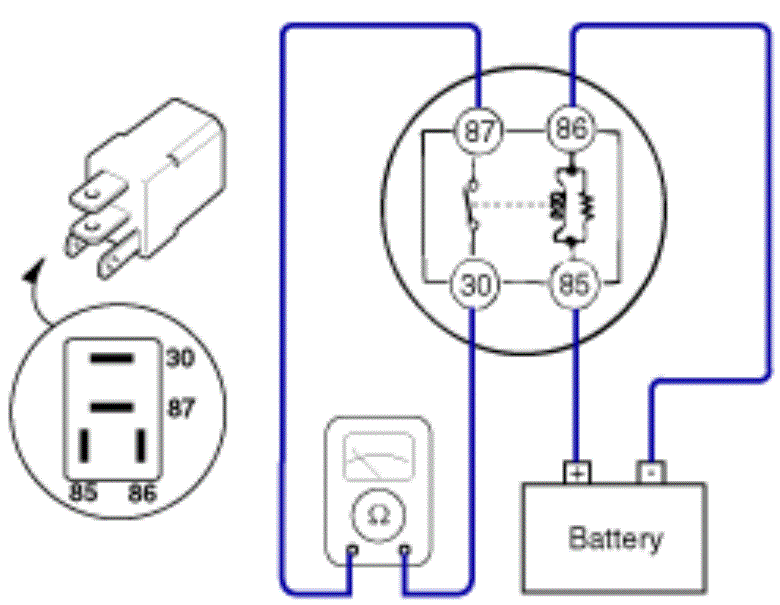

  5. Apply 12V to the terminal 85 and ground to the terminal 86 and then check for continuity between the terminals (30 and 87).
    Terminal Resistance Measure
    30 - 87 1Ω or less If there is no continuity between the terminals, replace the relay.
    G15471943Courtesy of HYUNDAI MOTOR AMERICA
  6. Install the starter relay.
  7. Install the fuse box cover.
