Components And Components Location: Components

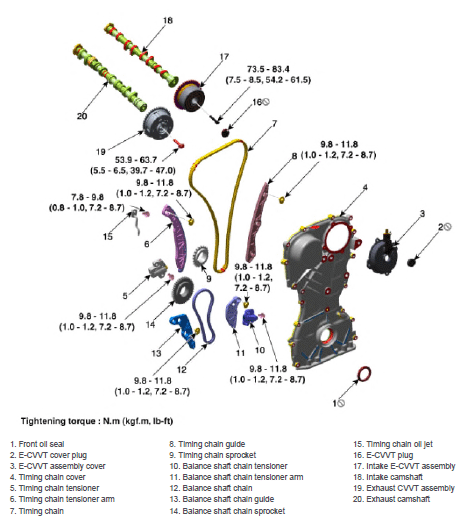

Fig 1: Timing Chain Components Location With Torque Specification

G15471465

Courtesy of HYUNDAI MOTOR AMERICA
