Components And Components Location: Components

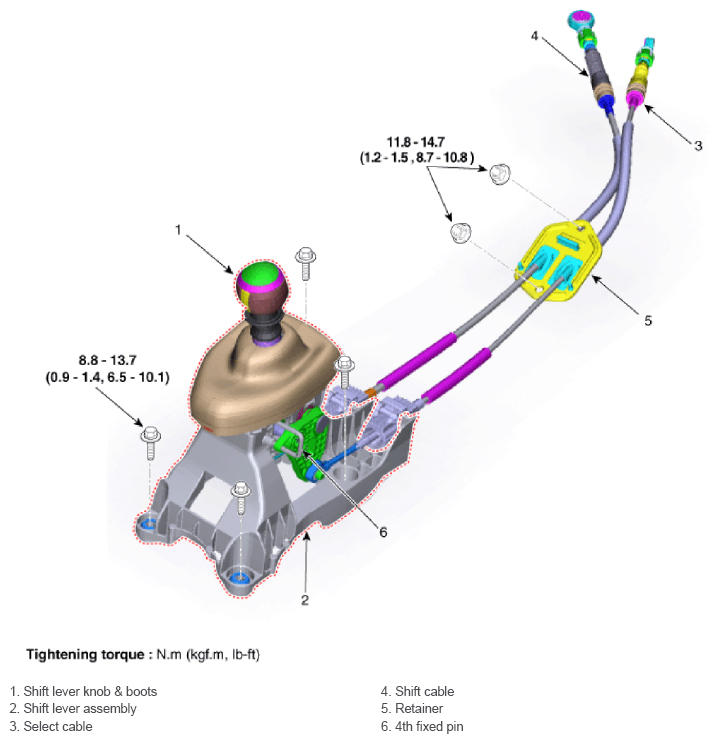

Fig 1: Shift Lever Components Location With Torque Specification

G13052746

Courtesy of HYUNDAI MOTOR AMERICA
